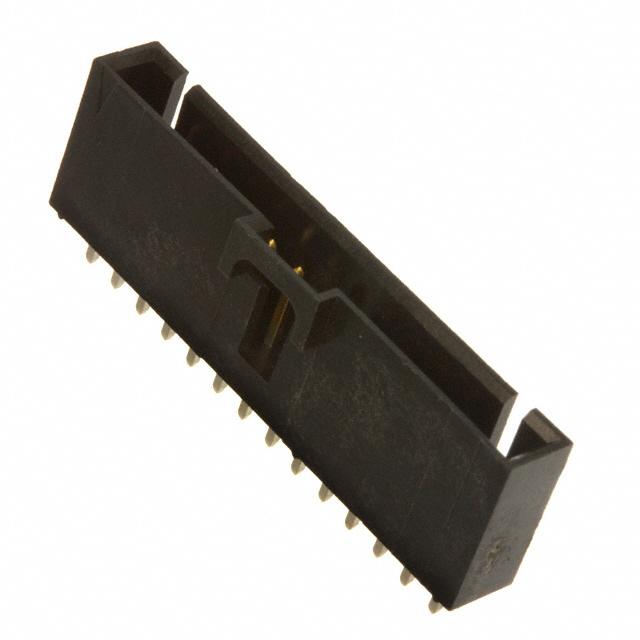

2.54毫米（ .100“ ）间距SLHeader ，单列，立式， 0.120 ”口袋，带罩， 14电路， 0.38um （ 15U “ ） 2.54mm .100" Pitch SLHeader, Single Row, Vertical, .120" Pocket, Shrouded, 14 Circuits, 0.38um 15u"
针座 通孔 14 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 14POS 2.54MM
贸泽:
Headers & Wire Housings SL 2.54MM HDR VT TH SHRD 1X14P
艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s shrouded 0705430013 header connector. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a maximum voltage rating of 250 V. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 38.11 mm long, 11.81 mm tall and 6.6 mm deep. 0705430013 is housed in black polyester.
Chip1Stop:
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn Shrouded Header 4 Sides HDR 14 POS 2.54mm Solder ST Thru-Hole SL™ Tube
