0533131465

2.00毫米（ .079 “ ）间距咪会™系统线对板头，双排，垂直， Leadfree14电路 2.00mm .079" Pitch Mi ll™ System Wire-to-Board Header, Dual Row, Vertical, Leadfree14 Circuits

Connector Header Through Hole 14 position 0.079" 2.00mm

得捷:
CONN HEADER VERT 14POS 2MM

艾睿:

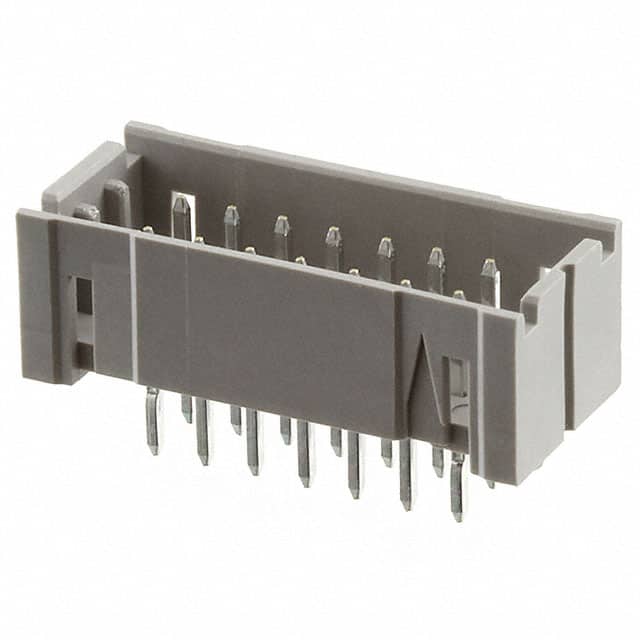

Mount this shrouded 0533131465 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 14 contacts that are made out of brass and plated with tin over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2 mm. It has a maximum voltage rating of 125 V. It has a straight body orientation. This device has a maximum current rating of 2 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 19.4 mm long, 6.5 mm tall and 8.5 mm deep. 0533131465 is housed in gray nylon.

安富利:
Conn Shrouded Header HDR 14 POS 2mm Solder ST Thru-Hole Tray

Verical:
Conn Shrouded Header 4 Sides HDR 14 POS 2mm Solder ST Thru-Hole Mi II™ Tray
