0873401224

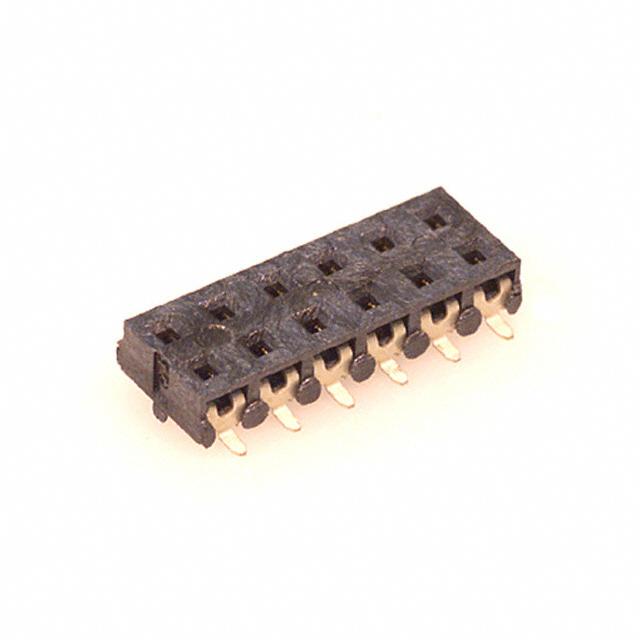

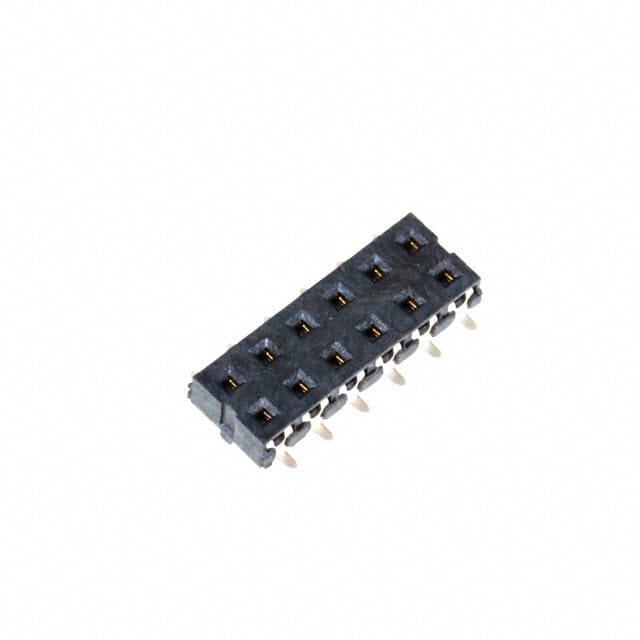

2.00毫米（ .079 “ ）间距的Milli-电网插座，表面贴装（非常低调） ，顶面入口 2.00mm .079" Pitch Milli-Grid Receptacle, Surface Mount Very Low Profile, Top Entry

12 Position Receptacle Connector Surface Mount

得捷:
CONN RCPT 12POS 0.079 GOLD SMD

艾睿:
Make strong and binding connections on your circuit boards by adopting this socket strip 0873401224 connector from Molex. This RCP connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. This is a 2-row connector. It has a maximum voltage rating of 125 VAC. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 12 mm long, 2.15 mm tall and 6.1 mm deep. 0873401224 is housed in black high temperature thermoplastic.

Chip1Stop:
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube

Verical:
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Milli-Grid™ Tube
