2.00毫米（ .079 “ ）间距咪会™系统线对板头，单排，右AngleLead自由， 7电路 2.00mm .079" Pitch Mi ll™ System Wire-to-Board Header, Single Row, Right AngleLead-free, 7 Circuits
针座 通孔，直角 7 位置 0.079"（2.00mm）
得捷:
CONN HEADER R/A 7POS 2MM
艾睿:

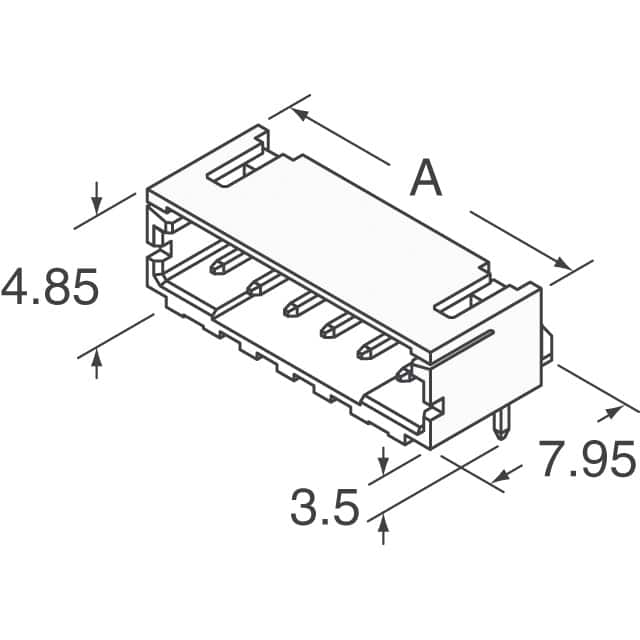

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 0533250760 header connector from Molex. This HDR connector&s;s 7 contacts that are made out of brass and plated with tin. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 125 V. Its pitch is 2 mm. It has a header type gender. This device has a maximum current rating of 2 A/contact. The item will be shipped in tray orientation. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 17.3 mm long, 4.85 mm tall and 7.95 mm deep. 0533250760 is housed in white glass filled polybutylene terephthalate.
安富利:
Conn Shrouded Header HDR 7 POS 2mm Solder RA Thru-Hole Tray
Verical:
Conn Shrouded Header 4 Sides HDR 7 POS 2mm Solder RA Thru-Hole Mi II™
