0552-2-15-15-21-27-10-0

MILL MAX  0552-2-15-15-21-27-10-0  芯片插座, 1路, 焊接

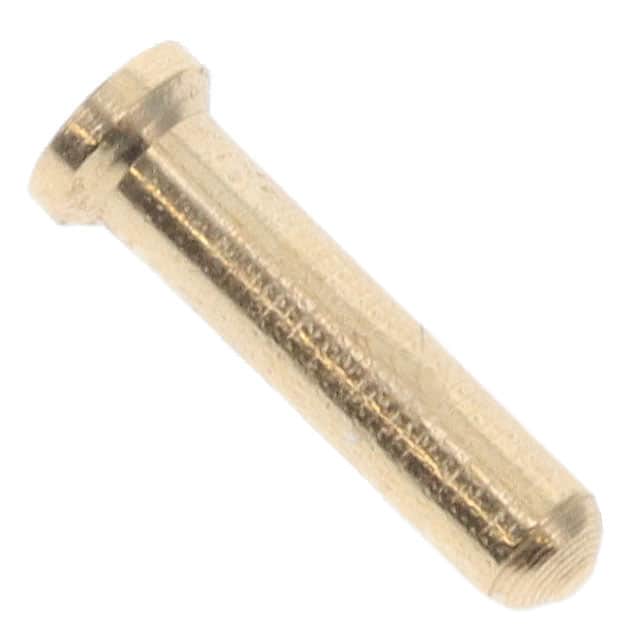

Pin Receptacle — Precision Machined Brass Housing, Press-Fit Beryllium Copper Contact

Shell Plating: 10μ" Gold over Nickel. Contact Plating: 30μ" Gold over Nickel.

得捷:
CONN PIN RCPT .015-.022 SOLDER

贸泽:
IC 与器件插座 PIN RCPT .015-.021

e络盟:
芯片和元件插座, 1 触点, 电路板插座, 0552 Series, 铍铜

艾睿:
Never worry about a poor connection with this 0552-2-15-15-21-27-10-0 connector contact from Mill-Max Mfg. Corp.. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Socket connector. This product comes packaged in bulk, so the parts will be stored loosely. This product is 4.31 mm long, 1.39 mm tall and 1.39 mm deep. It uses the solder termination method. This connector contact has an operating temperature range of -55 °C to 125 °C.

Allied Electronics:
Solder mount in .040 min. mounting hole

Verical:
Contact SKT 21 Size Solder ST Thru-Hole Bulk

Newark:
# MILL MAX  0552-2-15-15-21-27-10-0  IC & Component Socket, PCB Socket, 1 Contacts, Gold Plated Contacts
