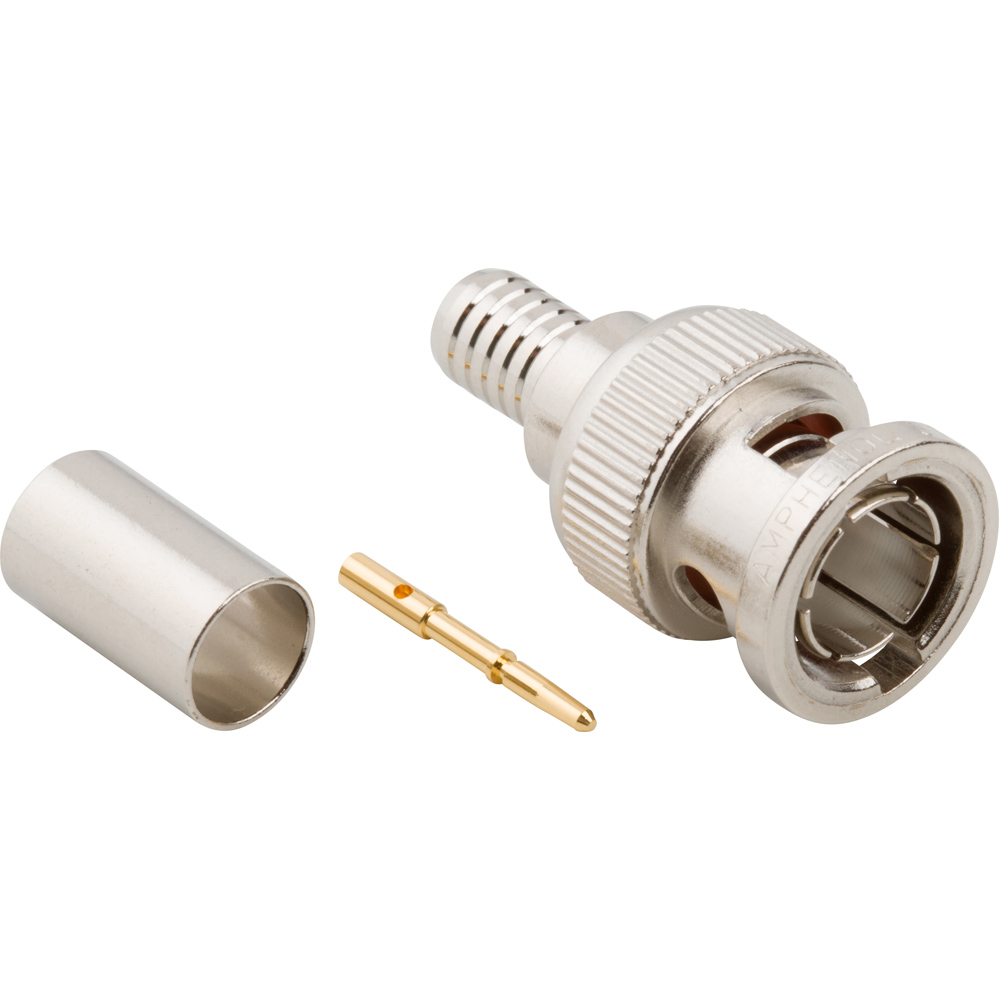

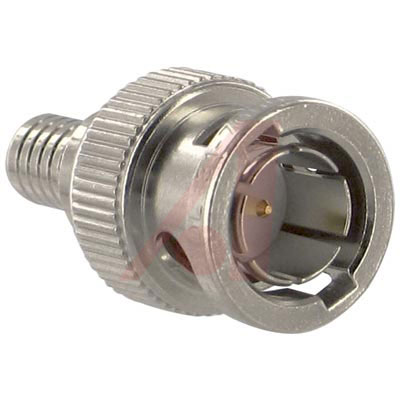

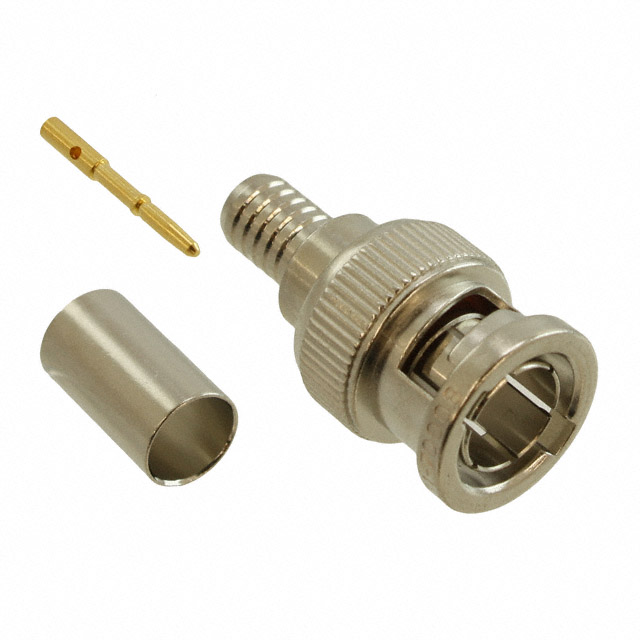

031-70008

射频/同轴连接器, BNC, 压接, 直型

These connectors can be used in a variety of applications where true 75 Ohm performance is needed to insure lower signal distortion. They may be matched with standard 50 Ohm BNC without damage or intermittence.

得捷:
CONN BNC PLUG STR 75 OHM CRIMP

e络盟:
射频/同轴连接器, BNC, 压接, 直型

艾睿:
Connect and protect your RF cable with this bnc 031-70008 RF connector from Amphenol, it will give a low impedance for easy data transferring. This connector&s;s body is plated in nickel. It has a straight body orientation. It has a plug type gender. It has an operating frequency of 0 to 4G Hz. This product is 31.7 mm long with a diameter of 14.3 mm. It uses the crimp termination method. This rf connector has an operating temperature of -65 to 165 °C.

Allied Electronics:
Connector; 75 Ohms; RG⁄ U-59; BNC; Plug

安富利:
Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold

Verical:
Conn BNC 0Hz to 4GHz 75Ohm Crimp ST Cable Mount PL Gold

MASTER:
RF Connector BNC Straight Crimp Plug for RG-59 75 Ohm

Powell:
BNC Straight Crimp Plug for RG-59, 75 Ohm

Online Components:
RF Connector BNC Straight Crimp Plug for RG-59 75 Ohm

Electro Sonic:
RF Connector BNC Straight Crimp Plug for RG-59 75 Ohm
