031-5329-72RFX概述

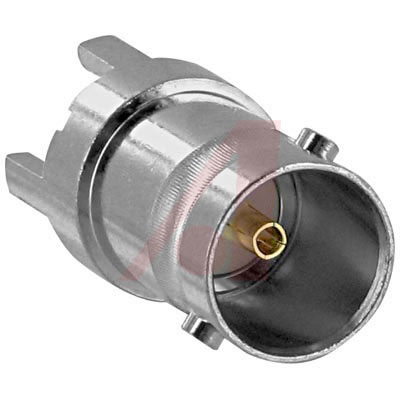

RF Connector BNC Straight PCB Jack Through Hole 75Ω

Receptacle, 50 Ohms Impedance, BNC Cable Type

** Note:** These connectors meet or exceed military specification, but aren"t on the QPL and are intended for commercial use only. Military specification numbers, where shown, are for reference only. Two distinct types of 75 Ohm BNC are available, both mate with each other and with 50 Ohm BNCs. Type 1 is designated 75-T1 and provides constant 75 Ohm performance with low VSWR DC to 4 GHz. Type 2 is designated 75-T2 and is usable with low reflection DC to 1 GHz. For applications above 1 GHz, Type 1 is recommended.

Post-terminal 4 legs. 0.433" base, 0.176" long-post terminal, 0.037" dia.

Printed circuit type.

031-5329-72RFX中文资料参数规格
技术参数

频率 4 GHz

拔插次数 500

工作温度Max 165 ℃

工作温度Min -65 ℃

额定电压 500 V

封装参数

安装方式 Through Hole

外形尺寸

高度 16.6 mm

物理参数

外壳颜色 Silver

触点材质 Phosphor Bronze

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694010

数据手册
