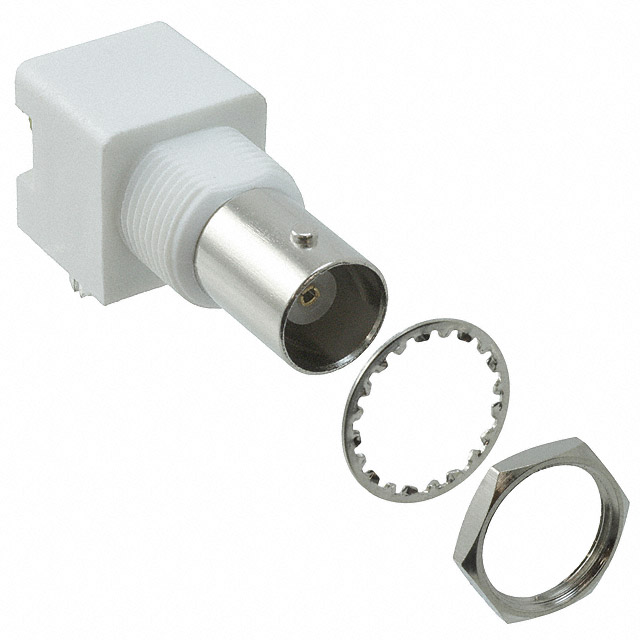

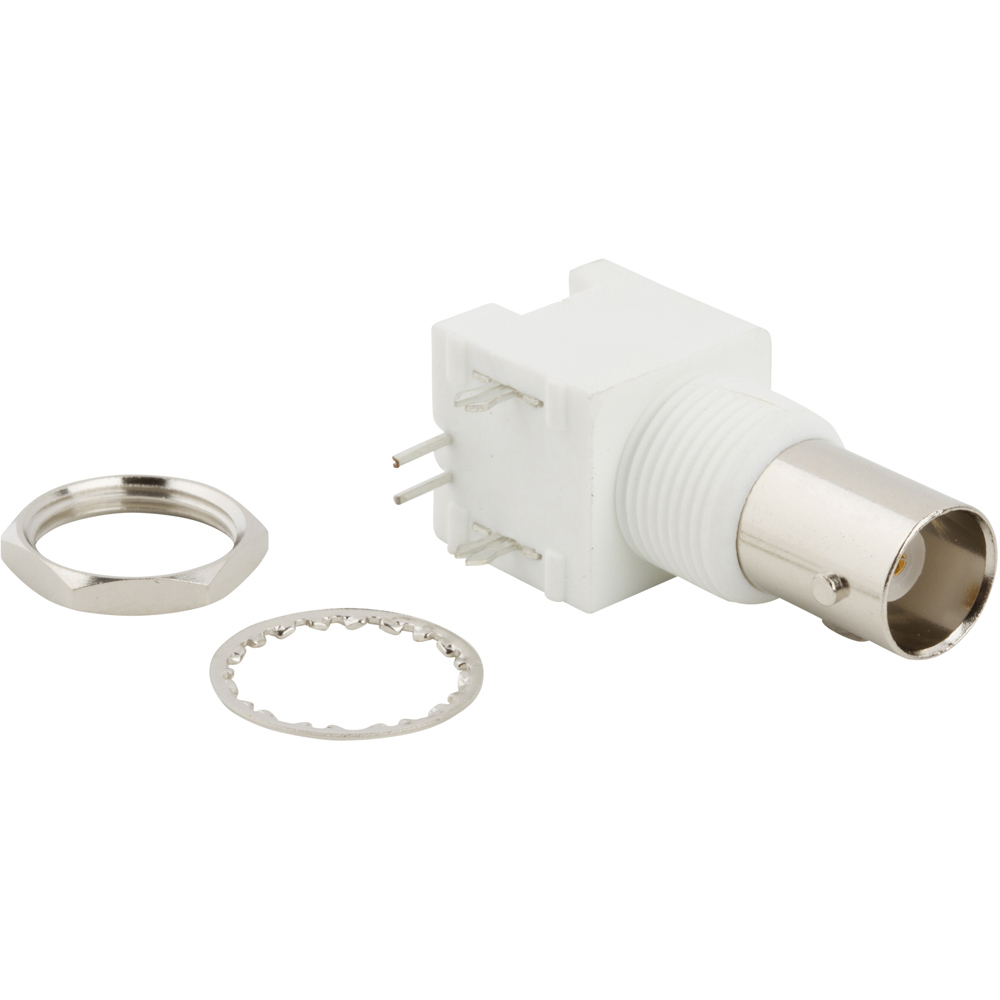

AMPHENOL RF 031-5431-10RFX. 射频/同轴连接器, BNC, 直角隔板插座, 焊接, 50Ω
The is a RF Connector, BNC series, BNC right angle PCB Jack with gold-plated phosphor bronze contacts and solder contact termination. Body made up of zinc die-cast with nickel-plated finish and polypropylene insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
- .
- Standard polarity
- .
- 5000MR Minimum insulation resistance
- .
- 500 Mating cycles
- .
- -55 to 85°C Temperature range
触点电镀 Gold
频率 4 GHz
绝缘电阻 5000 MΩ
拔插次数 500
工作温度Max 165 ℃
工作温度Min -65 ℃
额定电压 500 V
安装方式 Through Hole
宽度 14.4 mm
外壳颜色 White
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 165℃
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, 医用, 车用, 传感与仪器, Medical, Sensing & Instrumentation, 通信与网络, RF Communications, 射频通信, Automotive, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694010
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
031-5431-10RFX Amphenol 安费诺 | 当前型号 | 当前型号 |
MC23558 Multicomp | 类似代替 | 031-5431-10RFX和MC23558的区别 |
