0432028816

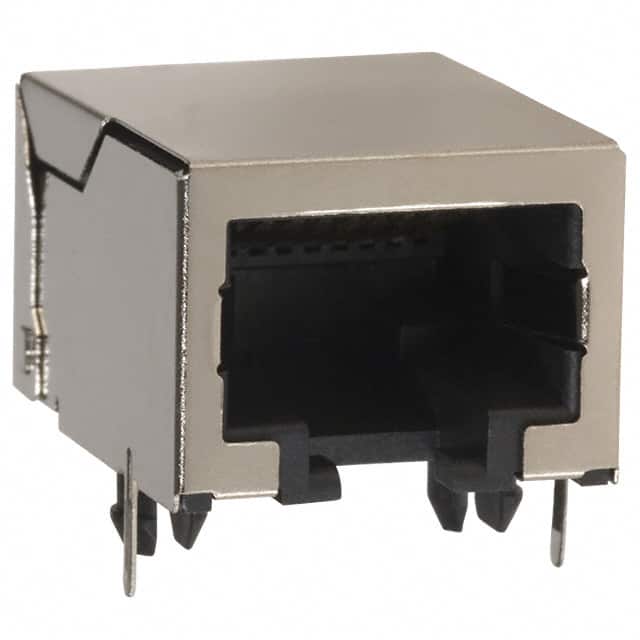

模块化插座，直角，低调，屏蔽，无面板接地接头，无需底部接地片，前部位置的PCB接地接头， 8/8 Modular Jack, Right Angle, Low Profile, Shielded, No Panel Grounding Tabs, without Bottom Grounding Tab, Front Position PCB Ground Tab, 8/8

模块化 - 插孔 8p8c（RJ45，以太网） 90°角（直角） 屏蔽式，EMI指 Cat3

得捷:
CONN MOD JACK 8P8C R/A SHIELDED

艾睿:

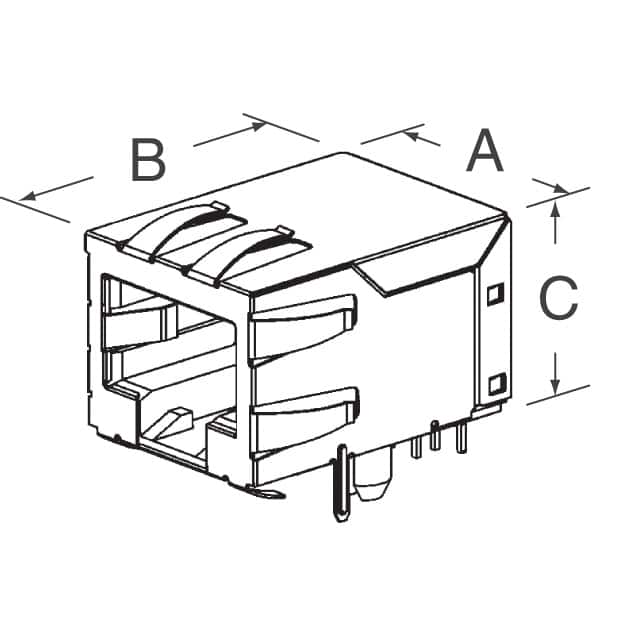

This rj-45 0432028816 telephone and telecom connector from Molex is perfect for high-speed signals. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a female type gender. Its pitch is 2.54 mm. It has a right angle body orientation. It has a maximum voltage rating of 125 V. This connector has a single port. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tray format. This product is 15.24 mm long, 11.58 mm tall and 18.03 mm deep. This part has an operating temperature of -40 to 85 °C. 0432028816 is housed in black polyamide. It uses the solder termination method.

安富利:
MODJACK RA LOPRO FLGLS W/SHLD 50AU 8/8

Chip1Stop:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 3/Cat 4 Tray

Verical:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 3/Cat 4 Tray
