0685610015概述

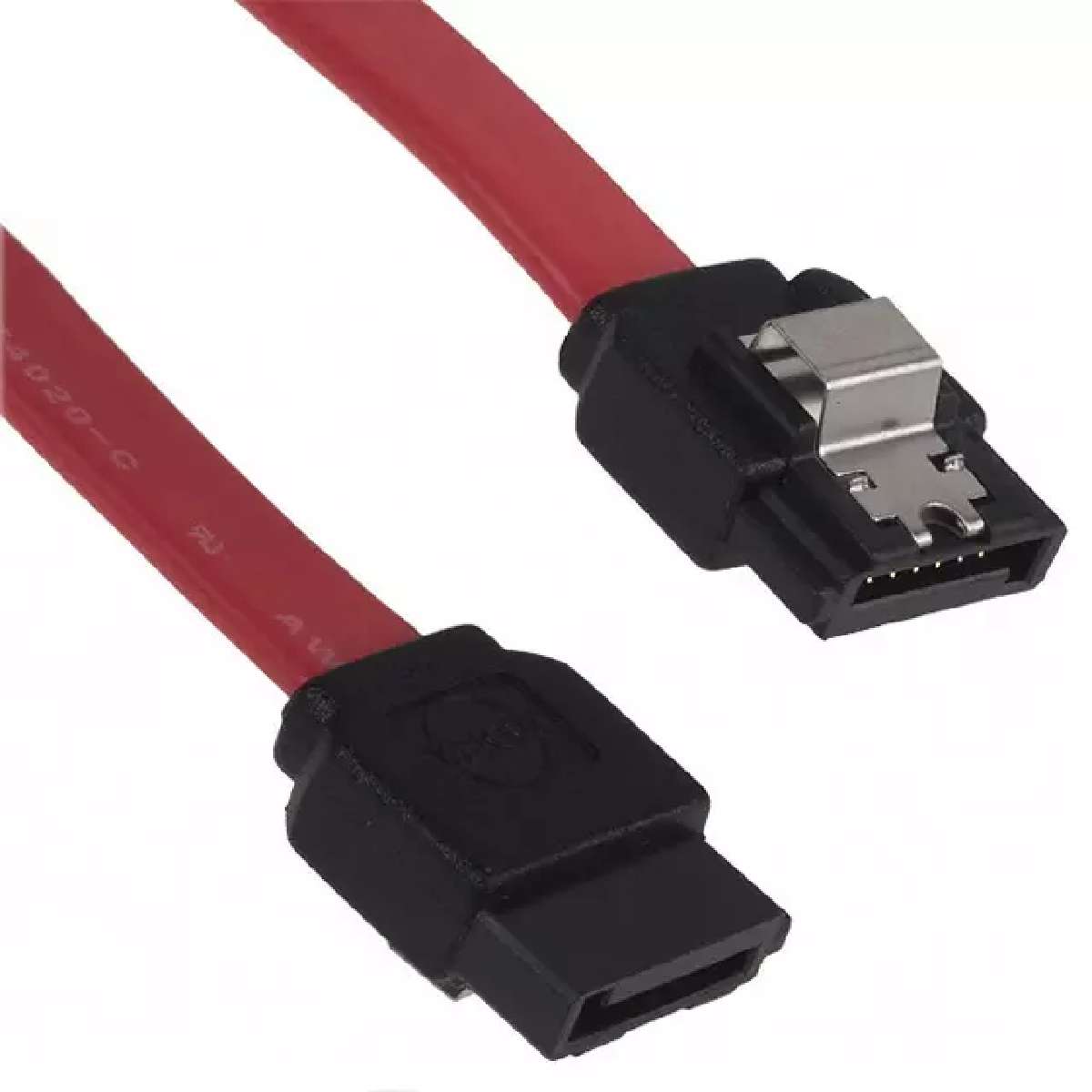

1.27毫米( .050 “ )间距,串行ATA直锁存到直闭锁信号线组件, 1.0米 1.27mm .050" Pitch, Serial ATA Straight Latching-to-Straight Latching Signal Cable Assembly, 1.0m

is manufactured by MOLEX and is categorized in the Pluggable Cables category. 0685610015 is described as CABLE ATA STR-STR LATCH 7POS 1M. Perfect Parts is a supplier of Cable Assemblies and other Miscellaneous.


得捷:
CABLE ATA STR-STR LATCH 7POS 1M


艾睿:
This device has a maximum current rating of 1.5 A. This part has an operating temperature range of -20 to 70 °C. This has a Serial ATA to Serial ATA connector. Its wire is 26 AWG. It has a PVC cable.


0685610015中文资料参数规格
技术参数

极性 Female

针脚数 7

额定电流Max 1.5 A

工作温度Max 70 ℃

工作温度Min -20 ℃

额定电压Max 40 VAC

外形尺寸

长度 1.00 m

电缆长度 1 m

物理参数

颜色 Red

触点材质 Stainless Steel

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0685610015
型号: 0685610015
制造商: Molex 莫仕
描述:1.27毫米( .050 “ )间距,串行ATA直锁存到直闭锁信号线组件, 1.0米 1.27mm .050" Pitch, Serial ATA Straight Latching-to-Straight Latching Signal Cable Assembly, 1.0m
