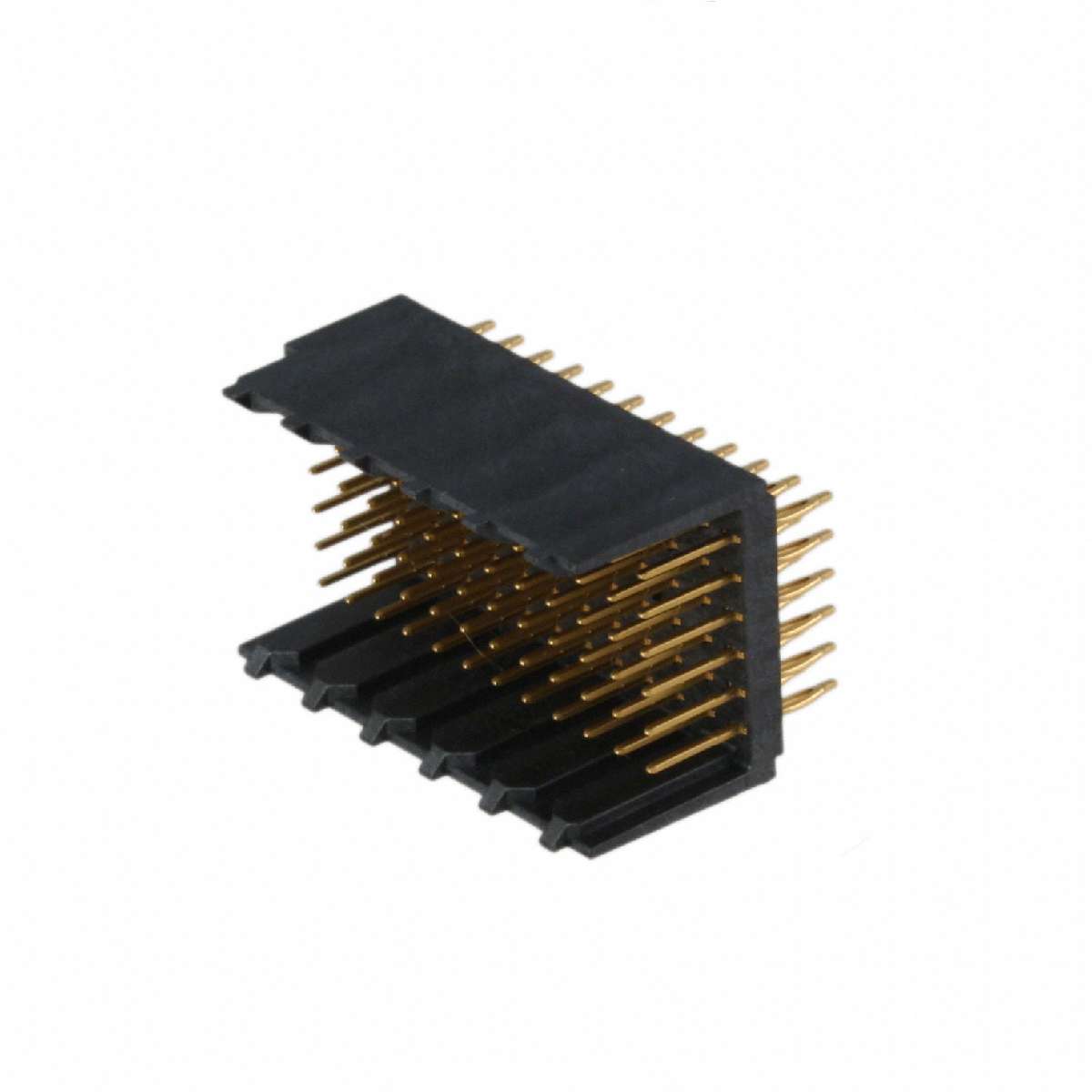

2.00毫米( .079 “ )间距HDM®板对板背板头,垂直,压配式,开放性的结局, 72电路 2.00mm .079" Pitch HDM® Board-to-Board Backplane Header, Vertical, Press-Fit,Open End, 72 Circuits
72 接头,公引脚 通孔 黑色 HDM
得捷:
CONN HEADER HDM 72POS PCB
立创商城:
0736420000
艾睿:
This hard metric 0736420000 backplane connector from Molex can be designed to provide a high amount of data transfer capabilities across multiple channels. This HDR connector&s;s 72 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. This is a 6-row connector. Its pitch is 2 mm. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0736420000 is housed in black liquid crystal polymer. This backplane connector has an operating temperature of -55 to 105 °C. This product is 23.84 mm long, 11.7 mm tall and 15.7 mm deep. It uses the press fit termination method.
安富利:
Conn Hard Metric HDR 72 POS 2mm Press Fit ST Thru-Hole Tube
Verical:
Conn Hard Metric HDR 72 POS 2mm Press Fit ST Thru-Hole HDM® Tube
触点数 72
额定电流 1 A
排数 6
针脚数 72
拔插次数 250
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 V
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 -
高度 11.7 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
