09232326850

DIN 41612 连接器 DIN-SIGNAL 2C032FP-4,5C1-2

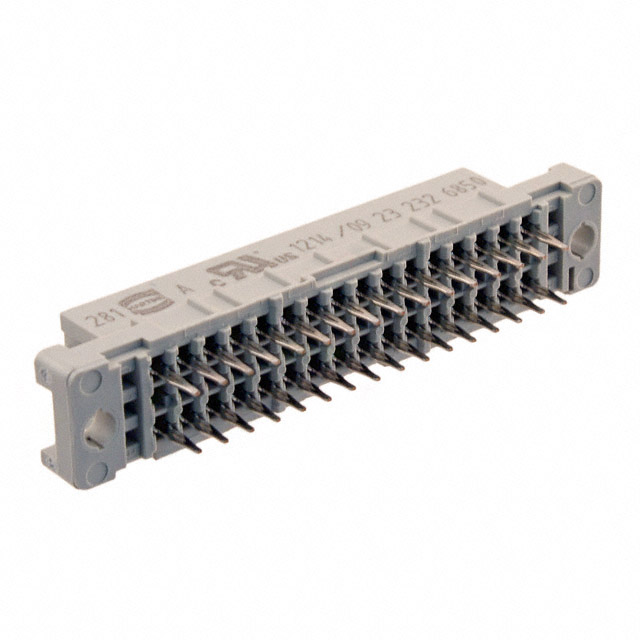

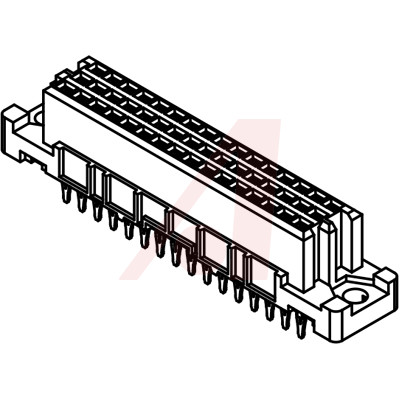

The din 41612 Harting backplane connector can help you connect multiple different lines in parallel, essentially forming a computer bus for your project. This F connector"s 32 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a female type gender. This device has a maximum current rating of 2 A. This backplane connector has an operating temperature of -55 to 125 °C. This product is 54.9 mm long, 11.6 mm tall and 10.5 mm deep. 09232326850 is housed in gray polybutylene terephthalate. It uses the press fit termination method.
