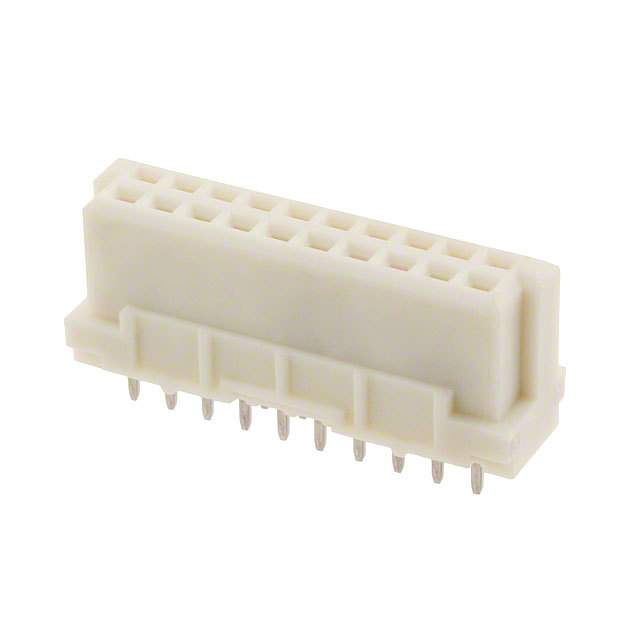

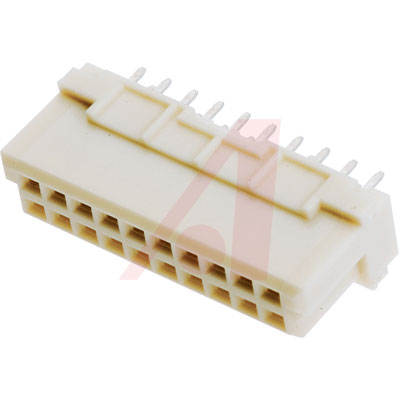

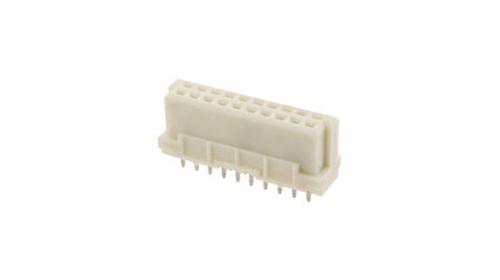

Harbus 3B 20 位置 2.54 mm 间距 母头 连接器 DIN-信号 3B020FR-2
DIN 41612 — Type 3B Connectors, 2 Amps
**Features:**
* Meets IEC 60603-2 Requirements
* Inverse Versions
* Reliable Two-Piece Connections
* Performance Level Two Plating
* Straight and Angled Solder Terminations
* UL 94V-0 Flammability Rating
* “Eye of the Needle” Press-Fit Termination
* UL Recognized and CSA Certified
* Crimp Versions, Shell Housings and Levers
得捷:
CONN DIN RCPT 20POS PCB GOLD
欧时:
DIN 41612 Female 20 Conts STR Solder 2A
贸泽:
DIN 41612 Connectors 20P Fmle 3B Solder
艾睿:
This din 41612 09242206414 backplane connector from Harting is ideal for linking multiple connectors together. This F connector&s;s 20 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 3-row connector. It has a female type gender. This device has a maximum current rating of 2 A. It uses the solder termination method. 09242206414 is housed in gray polyamide. This backplane connector has an operating temperature of -55 to 125 °C. This product is 29.15 mm long and 8 mm.
Allied Electronics:
Conn; Rect; DIN 41612 Series; Female; 20Conts; Straight; Solder; Backplane; 2A
