09031322921

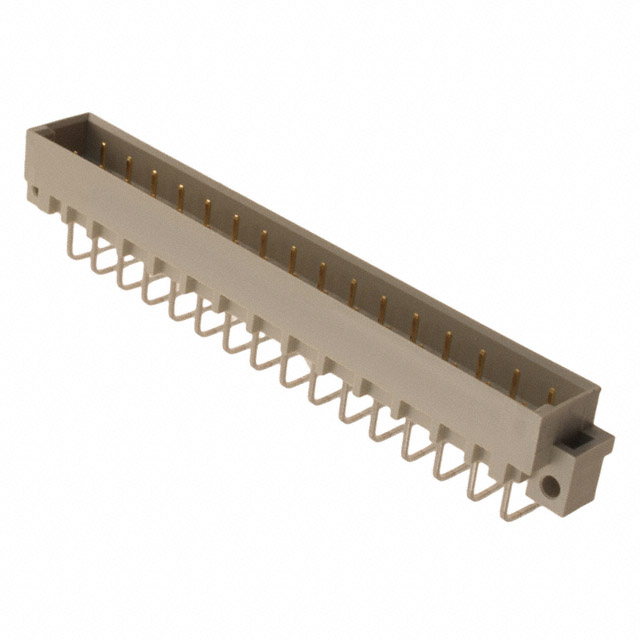

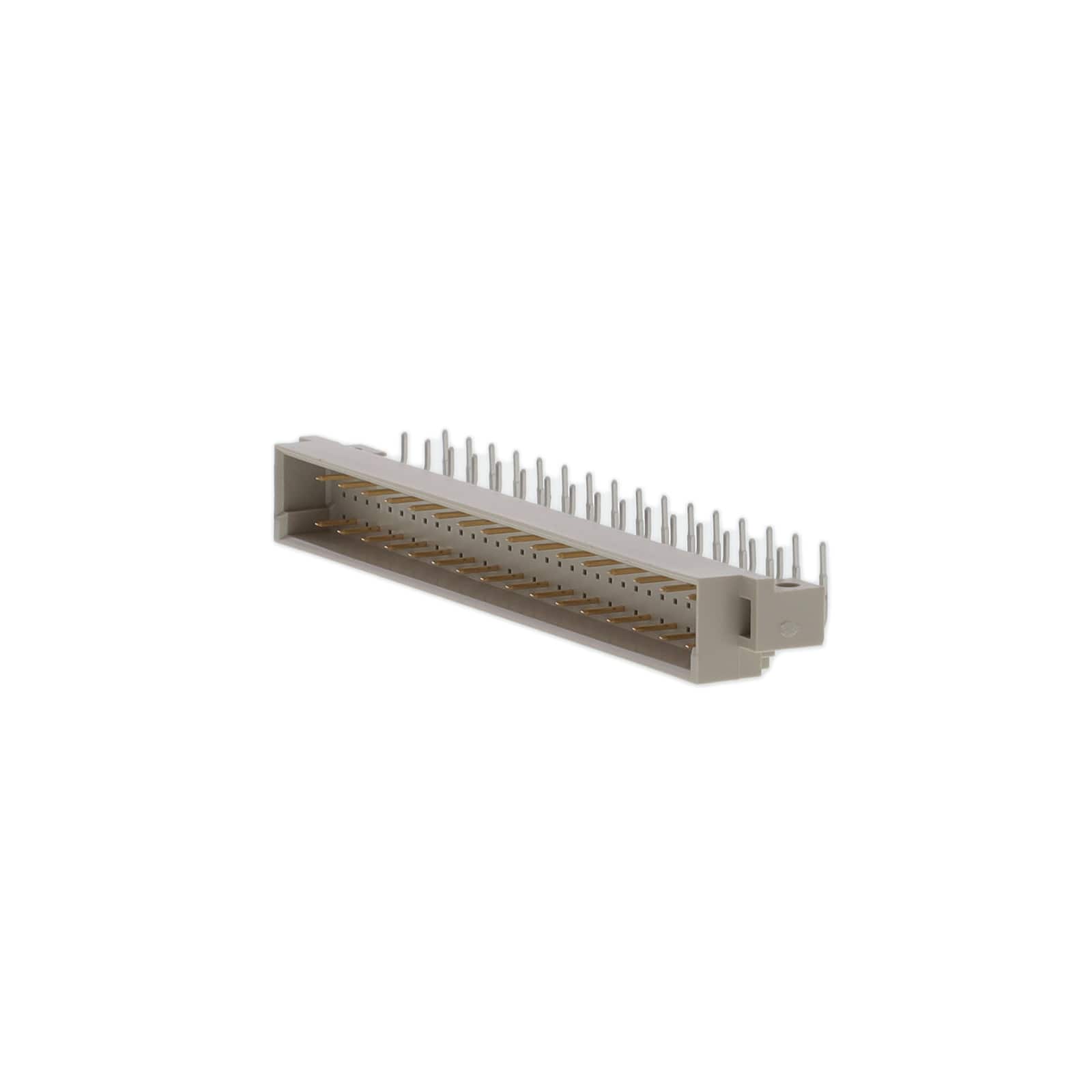

Conn DIN 41612M 32POS 5.08mm Solder RA Thru-Hole Box

This din 41612 backplane connector from Harting is ideal for linking multiple connectors together. This M connector"s 32 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a right angle body orientation. This is a 2-row connector. Its pitch is 5.08 mm. It has a male type gender. This device has a maximum current rating of 2 A. This backplane connector has an operating temperature of -55 to 125 °C. This product is 94 mm long, 11 mm tall and 17.72 mm deep. It uses the solder termination method. 09031322921 is housed in thermoplastic.
