09032962861

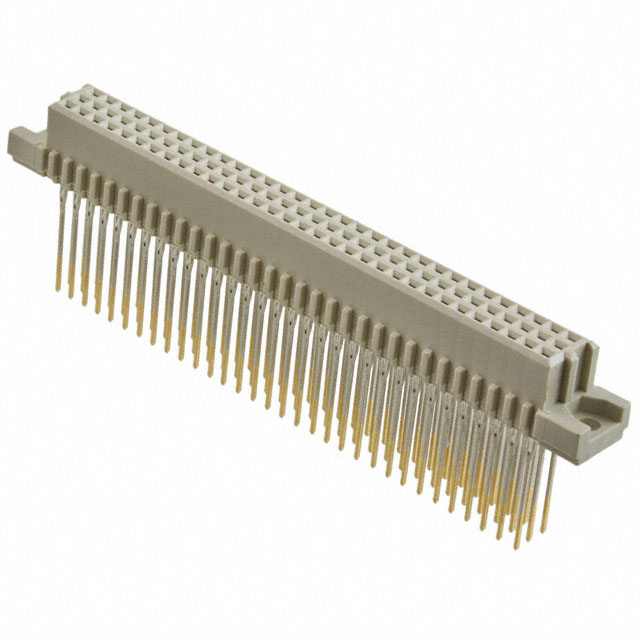

Conn DIN 41612F 96POS 2.54mm Press Fit ST Thru-Hole Box

Communicate between multiple devices by linking them to this din 41612 backplane connector from Harting. This F connector"s 96 contacts that are made out of copper alloy and plated with gold over nickel. This is a 3-row connector. It has a female type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 2 A. This backplane connector has an operating temperature of -40 to 105 °C. It uses the press fit termination method. 09032962861 is housed in gray polybutylene terephthalate. This product is 95 mm long, 11.6 mm tall and 10.6 mm deep.
