09060152914

DIN 41612 连接器 DIN-POWER H15MS-3,0C1-1-V1

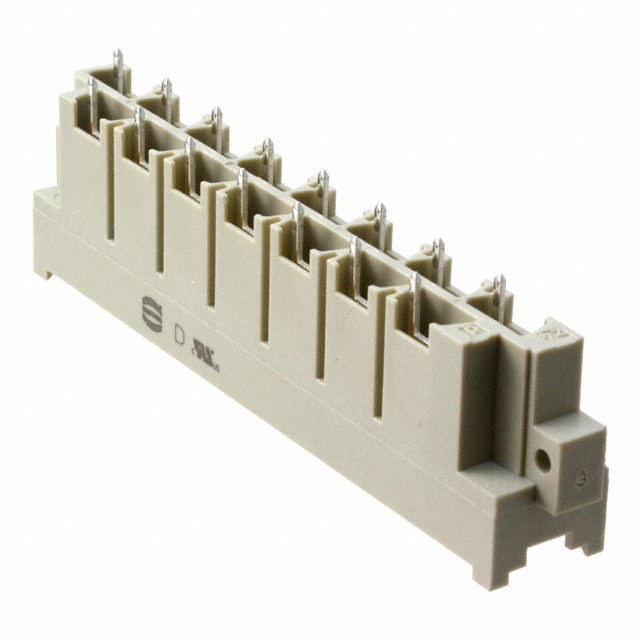

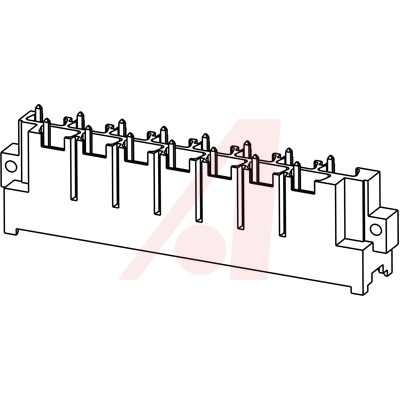

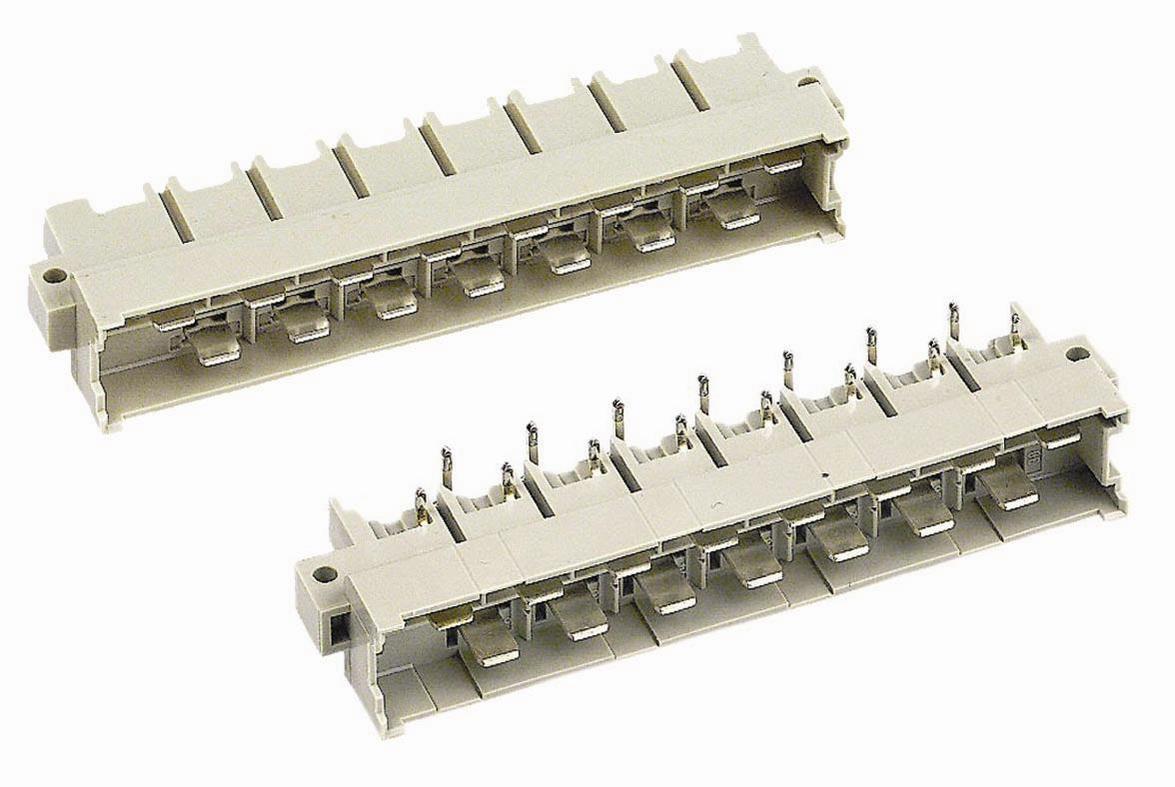

If you are in need of a connector that can provide a parallel serial bus connection, look no further than the din 41612 backplane connector from Harting. This M connector"s 15 contacts that are made out of copper alloy and plated with silver. Its pitch is 10.16 mm. It has a male type gender. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 15 A. It uses the solder termination method. This product is 93.85 mm long and 14.7 mm. This backplane connector has an operating temperature of -55 to 125 °C. 09060152914 is housed in thermoplastic.
