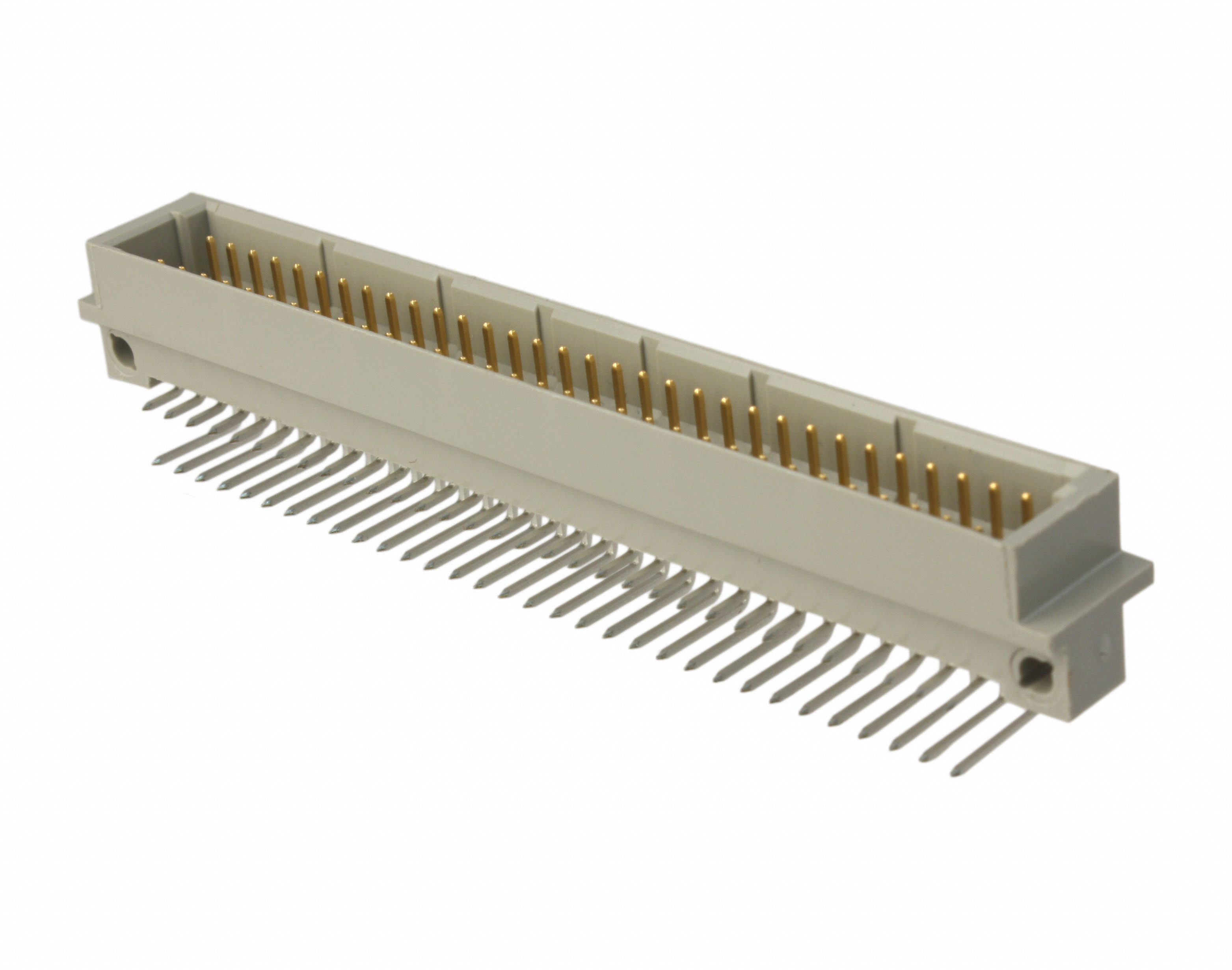

2.54毫米（ .100“ ）间距DIN 41612头， C风格，直角，通孔， 0.6微米（ 24μ ” ）选择金（Au ） ， 64电路 2.54mm .100" Pitch DIN 41612 Header, Style C, Right Angle, Through Hole, 0.6μm 24μ" Selective Gold Au, 64 Circuits
Think of "s din 41612 backplane connector the next time you need to connect several printed circuit boards together to form a computer system. This HDR connector"s 64 contacts that are made out of brass and plated with gold over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This is a 3-row connector. It has a header type gender. This device has a maximum current rating of 2.5 A/contact. The component will be shipped in tray format. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 0850030127 is housed in gray polyester. This product is 94 mm long, 11.1 mm tall and 18.08 mm deep.
