0871-0-15-20-82-14-11-0

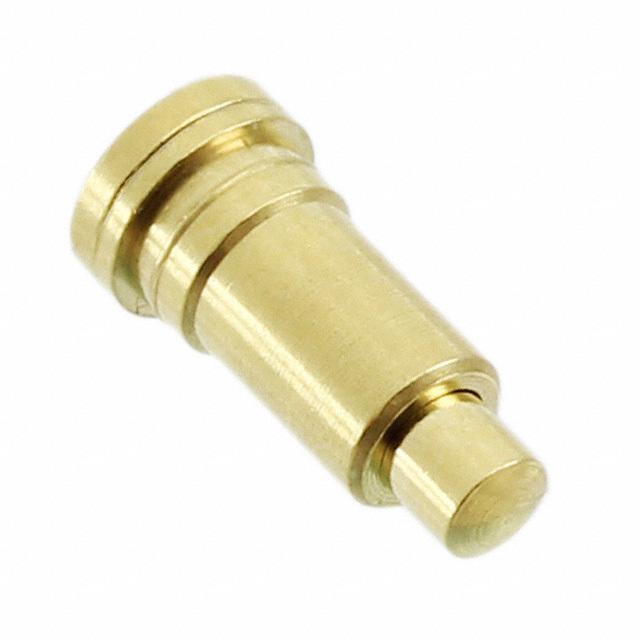

MILL MAX  0871-0-15-20-82-14-11-0  弹簧连接器, 扁平, 10.16MM

The from Mill Max is a discrete power spring loaded pin contacts. It provides a reliable electrical connection in the most rigorous environments. It features a 0.045" 1.14mm mid-stroke and 0.090" 2.29mm maximum stroke, endurance of 1,000,000cycles and a rated current of 9A at 10°C temperature rise. Applications include board stacking, docking stations, cable assemblies, quick connects and anywhere there is a blind mate situation.

.

Long stroke, surface mount

.

Force at mid stroke is 100g

.

Initial force pre-load is 25g

.

Copper alloy with gold finish sleeve & plunger material

.

Gold plated stainless steel spring

.

Maximum contact resistance is 20mohm

.

Operating temperature range from -55°C to +125°C
