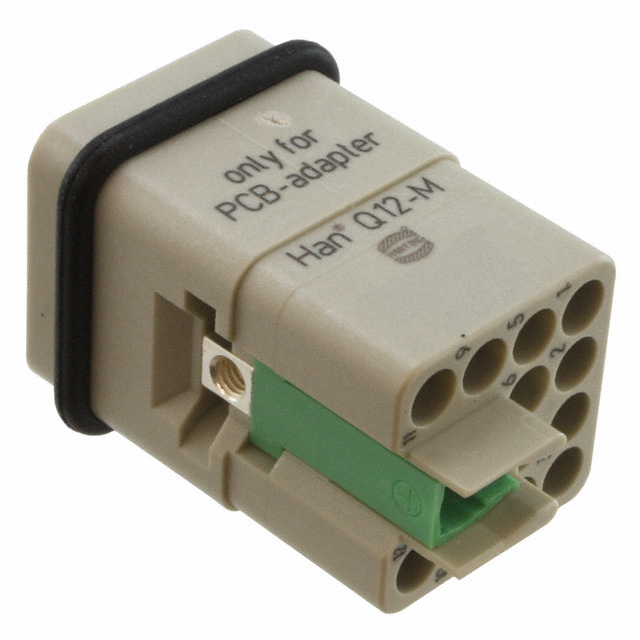

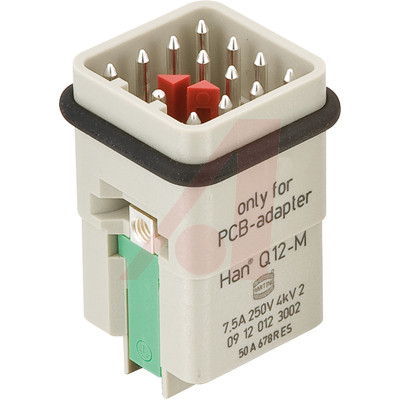

重载连接器插入件, 公, 12路
**HARTING Industrial Connectors Han Family – Han Q Series of Compact Connectors & Inserts for Han-Yellock:**
These Han Q Series are intended for use with hoods and housings contained within range 1. This hood and housing range is associated to a specific Harting "Size" number identifier.
**NOTE***** These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarized to prevent the possibility of a wrong connection.
**Features:**
* Crimp, Axial Screw or Han-Quick Lock termination
* Material insert: Polycarbonate
* Material contacts: Copper alloy
* Surface contacts: Silver-plated
* Approvals:
IEC 61984, EN 60664-1
DNV GL
UL / CSA
CSA-C22.2 No. 182.3 PVVA8.E318390
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
UL 2237 PVVA2.E318390
