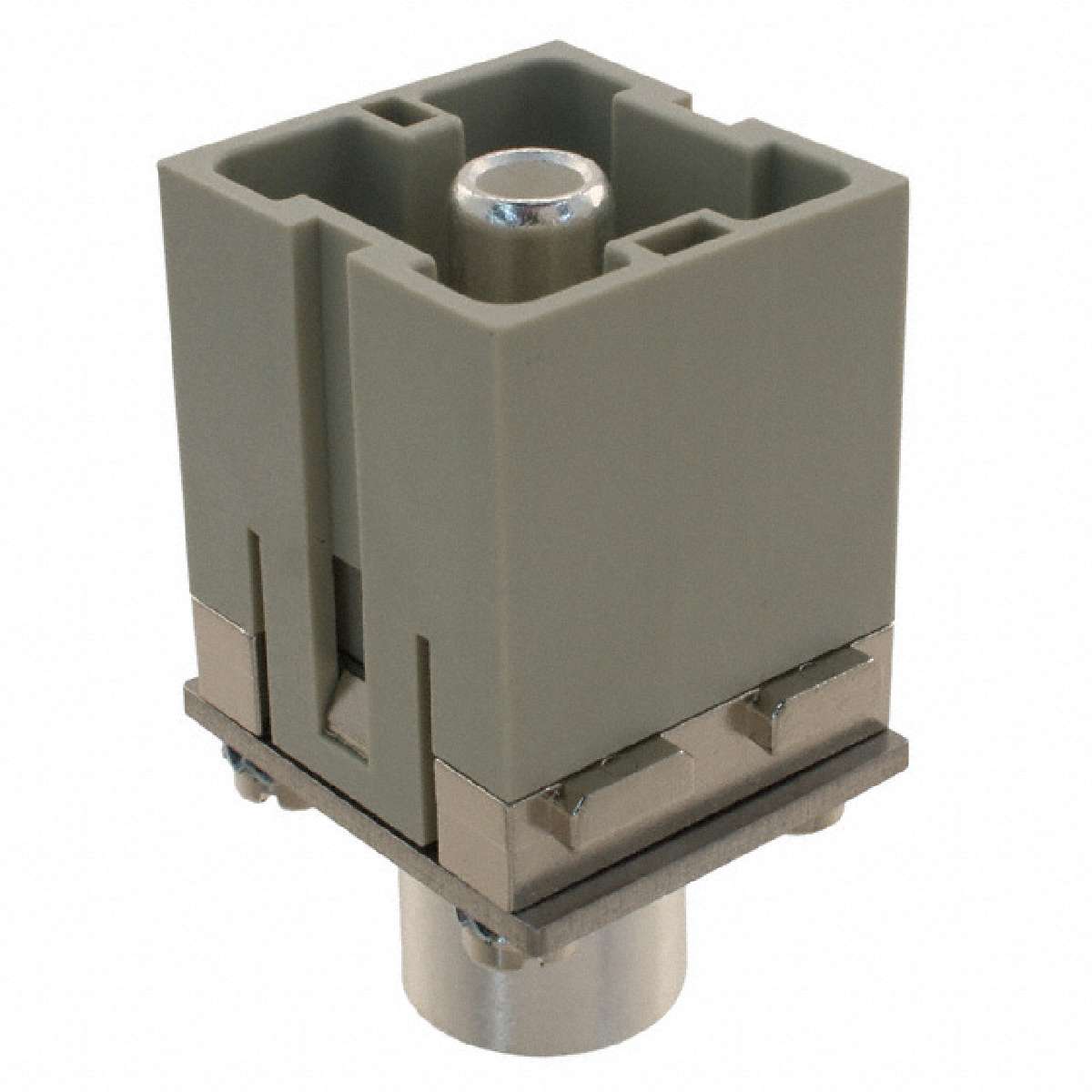

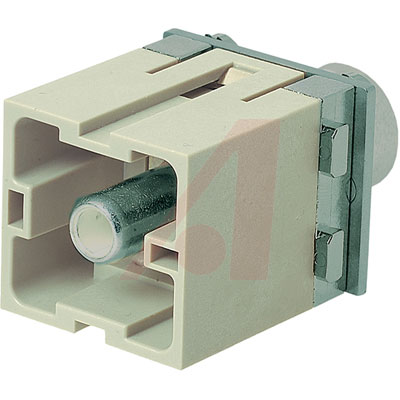

重载型连接器, Han-Modular Series, 插入件, 1触芯, 插头, 螺丝销
Whether your needs are small or large, this USB connector from Harting can help you in making a secure connection between a variety of components. This female connector has a single female contact. This is a 1-row connector. It has a plug type gender. It has a maximum voltage rating of 1000 V. It has a straight body orientation. This device has a maximum current rating of 200 A. This product is 29.4 mm long, 34.2 mm tall and 54.5 mm deep.
触点数 1
极性 Male
触点电镀 Silver
额定电流 200 A
排数 1
易燃性等级 UL 94 V-0
针脚数 1
拔插次数 500
额定电流Max 200 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 1000 V
额定电压 600 V
接触电阻Max 0.2 mΩ
安装方式 Screw-In
引脚数 1
高度 34.4 mm
颜色 Gray
触点材质 Copper Alloy
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
