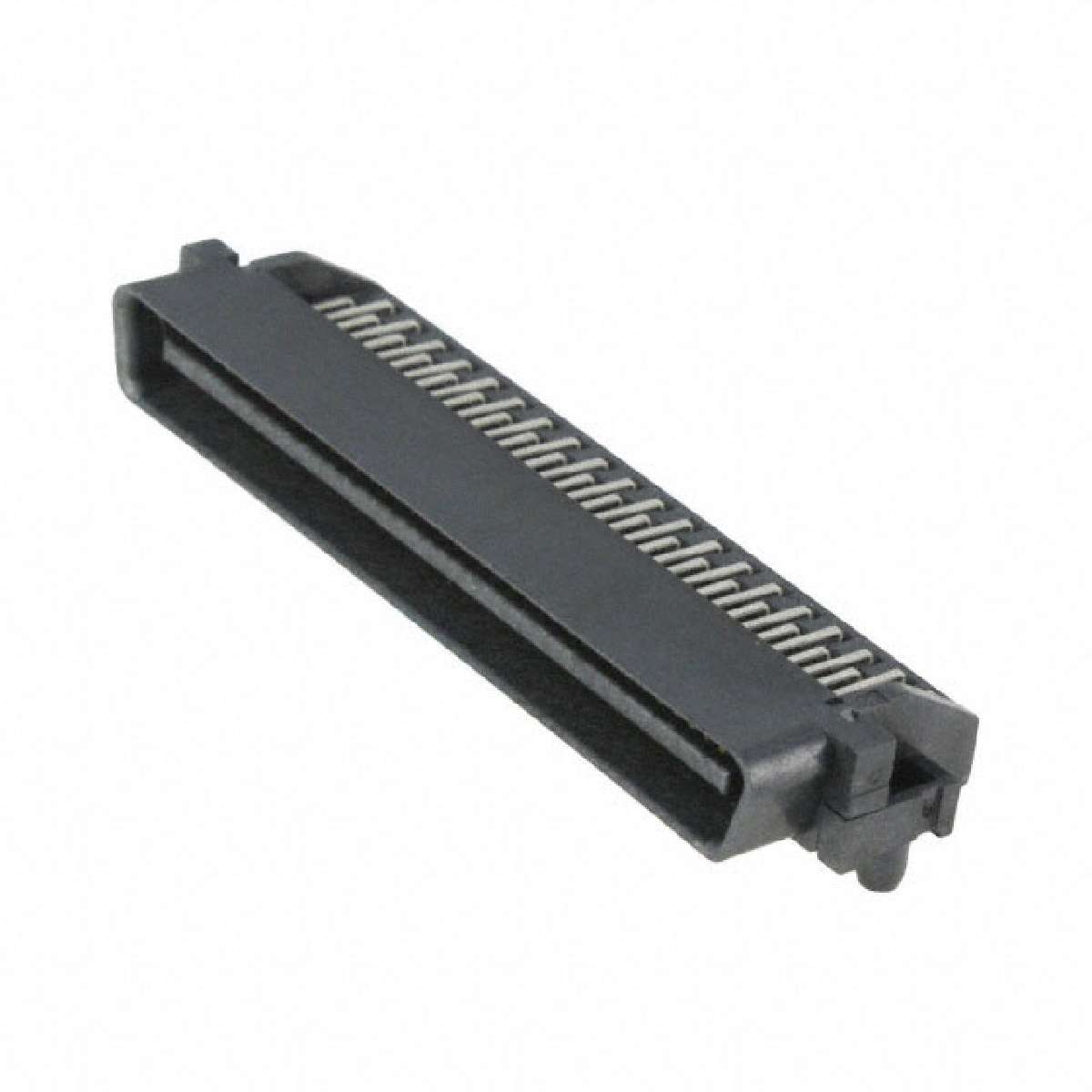

1.27毫米（ .050 “ ）间距EBBI ™ 50D插件 1.27mm .050" Pitch EBBI™ 50D Plug
80 位置 插头 板至板 通孔，直角 焊接
得捷:
CONN BTB PLUG 80POS R/A SOLDER
艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this ebbi 0716612080 SCSI connector from 0716612080 in order to interface with each other. This PL connector&s;s 80 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 30 V. This connector has a single port. It has a right angle body orientation. Its pitch is 2.54 mm. It has a plug type gender. This device has a maximum current rating of 1 A/contact. 0716612080 is housed in liquid crystal polymer. The component will be shipped in tray format. This product is 60.75 mm long, 7.5 mm tall and 17.45 mm deep. This SCSI connector has an operating temperature range of -40 °C to 105 °C. Its 80 terminals use the solder termination method.
安富利:
Conn EBBI PL 80 POS 2.54mm Solder RA Thru-Hole 80 Terminal 1 Port Tray
Chip1Stop:
Conn EBBI PL 80 POS 2.54mm Solder RA Thru-Hole 80 Terminal 1 Port Tray
