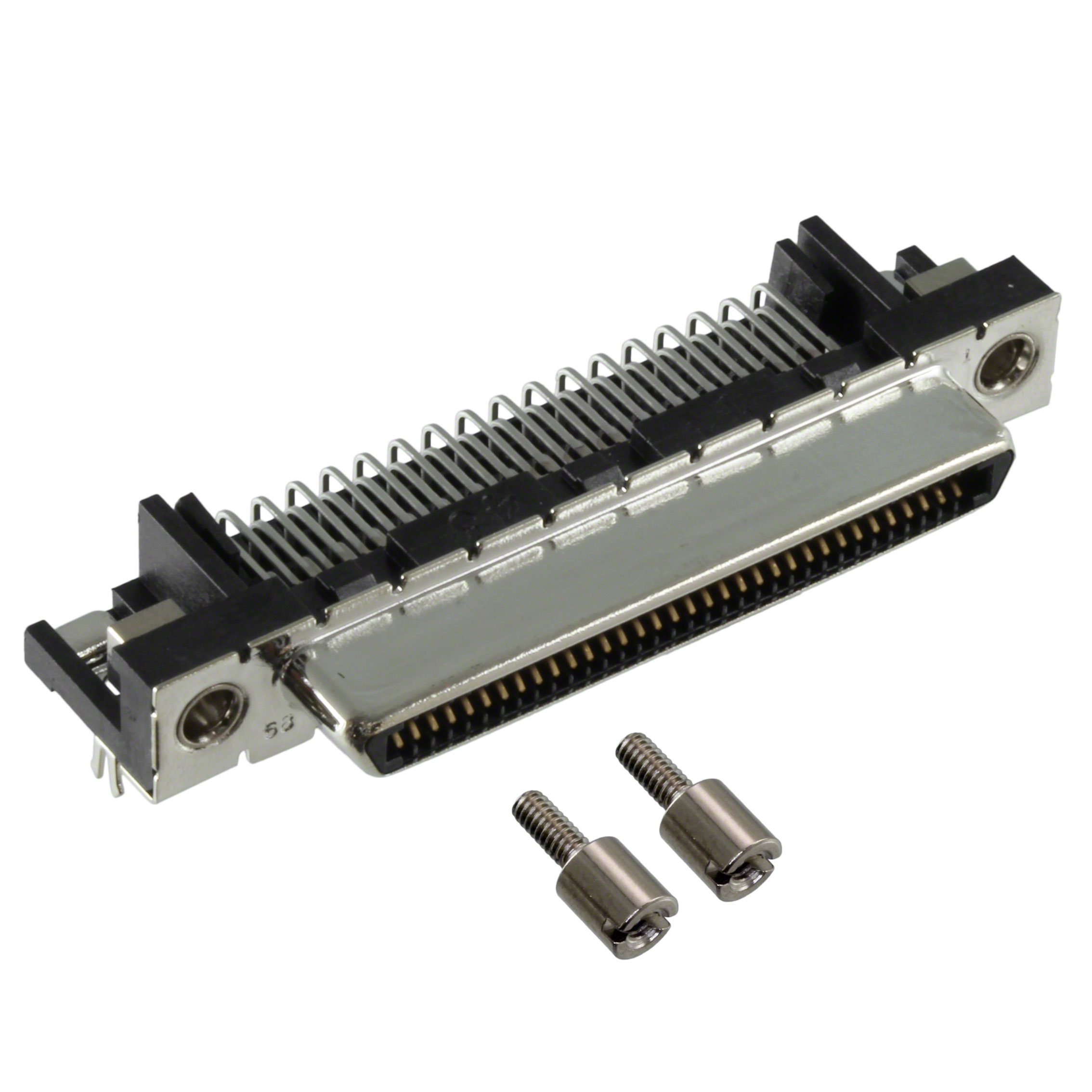

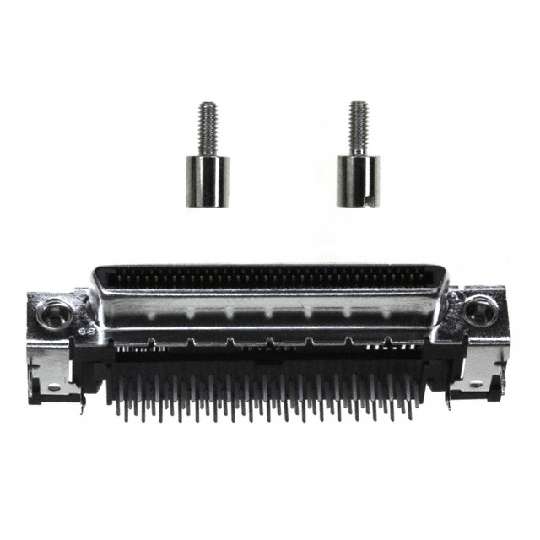

0.80毫米（ .031 “ ）间距超+ ™ VHDCI插座，直角，或withoutEnhanced盾， 68电路 0.80mm .031" Pitch Ultra+™ VHDCI Receptacle, Right Angle, with or withoutEnhanced Shield, 68 Circuits
68 位置 插座 SCSI+，VHDCI 通孔，直角 焊接
得捷:
CONN VHDCI RCPT 68POS R/A SOLDER
贸泽:
I/O Connectors VHDCI 0.8MM RA Rec W/Screwlocks 68Ckt
艾睿:

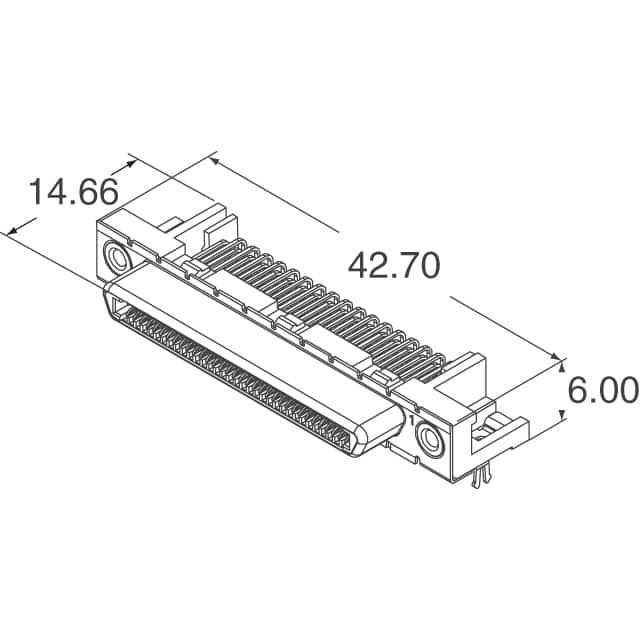

Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this vhdci 0714300008 SCSI connector from 0714300008 in order to interface with each other. This RCP connector&s;s 68 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a right angle body orientation. It has a maximum voltage rating of 30 VDC|30VAC. This connector has a single port. Its pitch is 1.6 mm. It has a receptacle type gender. 0714300008 is housed in liquid crystal polymer. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 42.7 mm long, 6.28 mm tall and 14.65 mm deep. This SCSI connector has an operating temperature range of -55 °C to 85 °C. Its 68 terminals use the solder termination method.
安富利:
Conn IEEE 1386 RCP 68 POS 1.6mm Solder RA Thru-Hole Tube
Chip1Stop:
Conn IEEE 1386 RCP 68 POS 1.6mm Solder RA Thru-Hole 68 Terminal 1 Port Tube
Verical:
Conn VHDCI RCP 68 POS 0.8mm Solder RA Thru-Hole 68 Terminal Ultra+™ 1 Port Tube
