09692115072

HARTING  09692115072  连接器, 组合式D-SUB, 混合信号, D Sub-M系列, 7W2, 插头, 5 触点, 2, 焊接

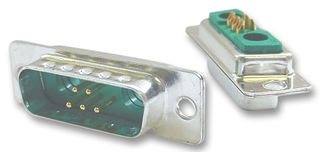

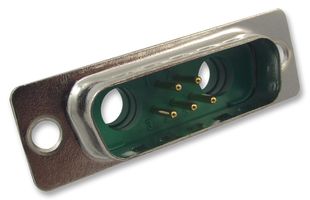

The 09 69 211 5072 is a 7W2 mixed signal male Combination D-sub Receptacle with tin-plated steel shell, dimples, solder brackets, thermoplastic resin, glass fibre filled polyester UL94V-0 mouldings. Solder contact termination. Mixed shells with pre-mounted signal solder cup contacts.

.

2 Power positions

.

5 Signal contacts

.

S4 Performance level

得捷:
CONN D-SUB PLUG 7POS SLDR CUP

贸泽:
D-Sub混合触点连接器 5+2 MALE SLDR 7W3 6 SIGNAL 2 SPECIAL

艾睿:
This 09692115072 DVI connector from Harting will make secure connections for all of your serial ports. It has a straight body orientation. This connector has a single port. This device has a maximum current rating of 5 A. This DVI connector has an operating temperature of -55 to 125 °C. This product is 39.1 mm long, 12.5 mm tall and 14.1 mm deep. Its 7 terminals use the solder cup termination method.

Allied Electronics:
DSUB MA 7W2 SHELL WITH SOLDER CUP CONT.

Verical:
Conn D-Subminiature PIN 5Signal/2Cavity POS Solder Cup ST Panel Mount 7 Terminal 1 Port

Newark:
# HARTING  09692115072  Combination Layout D Sub Connector, Mixed Signal, D Sub-M Series, DA-7W2, Plug, 5 Contacts, 2
