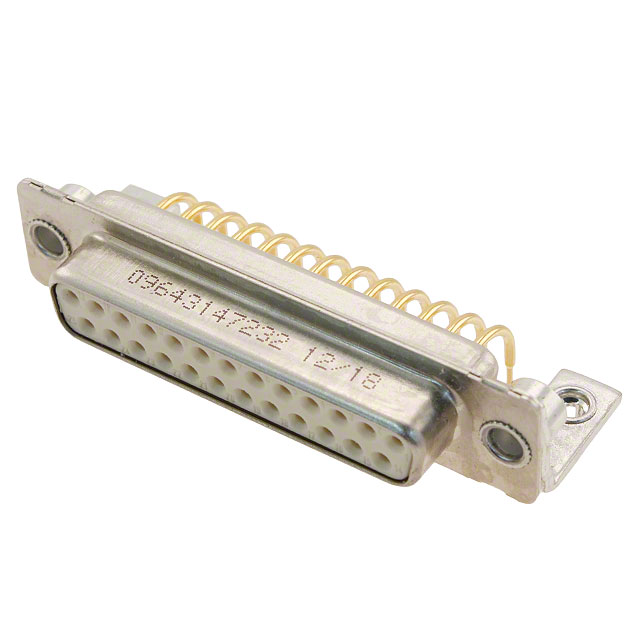

Harting D-Sub Filter 系列 直角 印刷电路板安装 插座, 焊接 D-sub 连接器, 25 路, 100 V, 7.5A
Harting Filtered D-Sub Connectors are distinguished by their high performance and offer optimal filtering. The filtering element incorporates a multi-layer printed circuit board and surface mount components, all within the standard D-sub shell.
**Features**:
* Designed to Enable Systems to Meet and Comply with FCC-part 15, IEC 1000 and EN 5502 Specifications
* Suitable for Military, Aerospace, Industrial, Medical, Telecom and Computer Applications
* Uses the Same Standard Footprint Allowing Direct Interchange with Existing D-Sub Connectors
* Type C Filter, 1000 pF
* UL Recognized
触点数 25
极性 Female
额定电流 7.5 A
绝缘电阻 1000 MΩ
电容 1000 pF
排数 2
易燃性等级 UL 94 V-0
针脚数 25
接触电阻 10 mΩ
拔插次数 200
额定电流Max 7.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 100 V
额定电压 100 V
安装方式 Through Hole
封装 Steel
高度 13.55 mm
封装 Steel
颜色 Natural
触点材质 Copper Alloy
材质 Steel
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
09643147232 Harting Technology Group 哈丁电子 | 当前型号 | 当前型号 |
3-106507-2 泰科 | 功能相似 | 09643147232和3-106507-2的区别 |
1-1634586-2 泰科 | 功能相似 | 09643147232和1-1634586-2的区别 |
3-1634586-2 泰科 | 功能相似 | 09643147232和3-1634586-2的区别 |
