09662526611概述

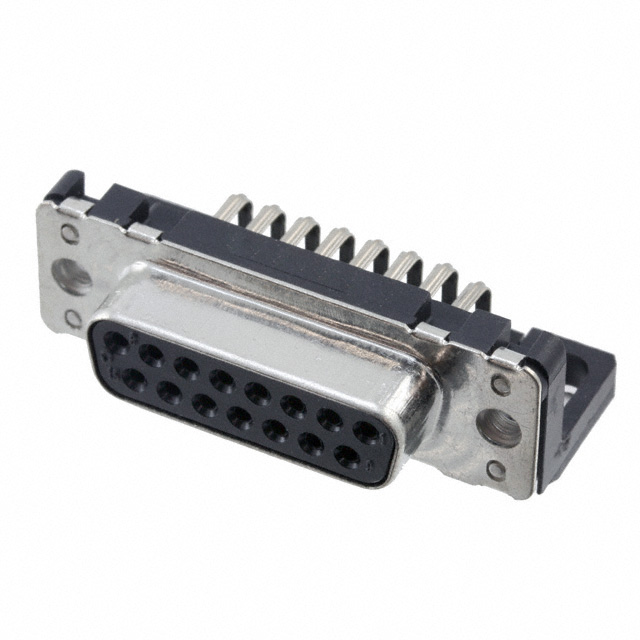

D-Sub 连接器, 直角, 15 触点, 插座, 焊接, DA, 钢主体

**HARTING - D-Sub Subminiature D connectors :**

In line with this strategic course, the Harting D-Sub connectors provide universal solutions for specific user applications. A consistent, ongoing innovation process ensures that users of Harting’s continuously expanding D-Sub product range always benefit from the latest interface technology. Harting Connectivity & Networks generates solutions throughout the triad of Installation Technology, Device Connectivity, and Smart Network Infrastructure for all automation lifelines – namely data, signals and power.

**Features:**

* MVB, WTB, CAN, Profibus, RS232 interfaces

* Available in multiple termination techniques

* The proper contact coating to suit any requirement

* Standard, Power, coaxial, IP 67 and filter

* D-sub standard, waterproof, mixed and D-Sub filter

09662526611中文资料参数规格
技术参数

触点数 15

极性 Female

额定电流 6.5 A

绝缘电阻 10000 MΩ

排数 2

方向 Right Angle

针脚数 15

额定电流Max 6.5 A

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

引脚数 15

外形尺寸

高度 13.6 mm

物理参数

触点材质 Copper Alloy

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买09662526611
型号: 09662526611
制造商: Harting Technology Group 哈丁电子
描述:D-Sub 连接器, 直角, 15 触点, 插座, 焊接, DA, 钢主体
替代型号09662526611
型号/品牌 代替类型 替代型号对比

09662526611

Harting Technology Group 哈丁电子

当前型号

当前型号

SDAX15SNT

伊利诺斯工具

类似代替

09662526611和SDAX15SNT的区别

1218434-2

泰科

功能相似

09662526611和1218434-2的区别

DA-15S-1-A-5-N-A191-A197

ITT电子

功能相似

09662526611和DA-15S-1-A-5-N-A191-A197的区别
