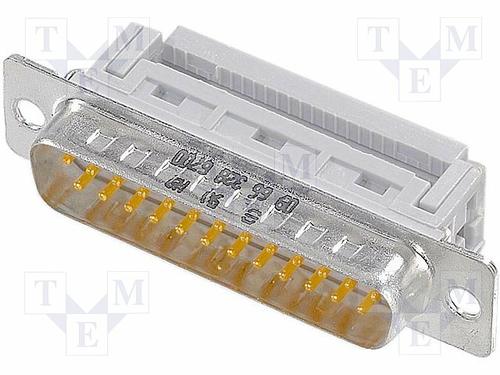

09663287700图片1

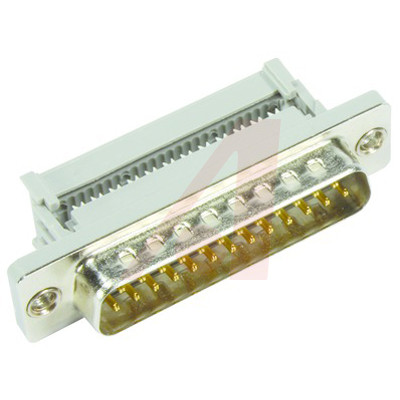

09663287700图片2

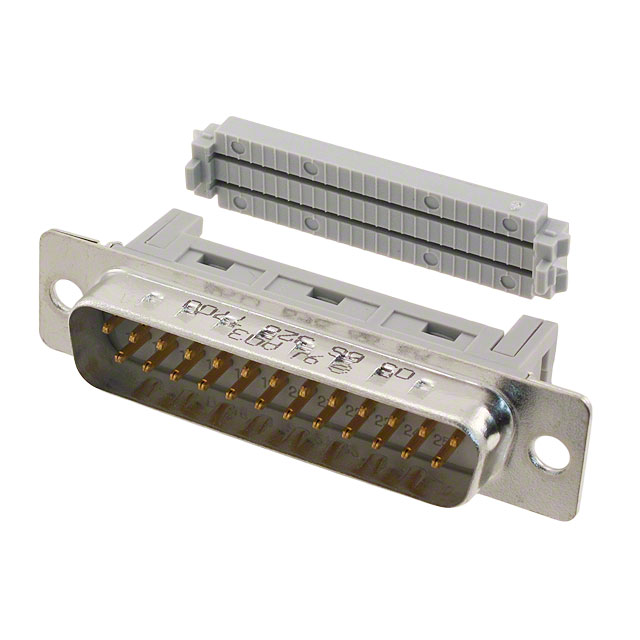

09663287700图片3
09663287700图片4
09663287700图片5
09663287700概述

Connectors; D-Sub; Standard; 25P MALE IDC METAL SHELL

**HARTING - D-Sub Subminiature D connectors :**

In line with this strategic course, the Harting D-Sub connectors provide universal solutions for specific user applications. A consistent, ongoing innovation process ensures that users of Harting’s continuously expanding D-Sub product range always benefit from the latest interface technology. Harting Connectivity & Networks generates solutions throughout the triad of Installation Technology, Device Connectivity, and Smart Network Infrastructure for all automation lifelines – namely data, signals and power.

**Features:**

* MVB, WTB, CAN, Profibus, RS232 interfaces

* Available in multiple termination techniques

* The proper contact coating to suit any requirement

* Standard, Power, coaxial, IP 67 and filter

* D-sub standard, waterproof, mixed and D-Sub filter

09663287700中文资料参数规格
技术参数

触点数 25

极性 Male

触点电镀 Gold over Nickel

额定电流 2 A

绝缘电阻 10000 MΩ

排数 2

针脚数 25

拔插次数 50

额定电流Max 2 A

接触电阻Max 10 mΩ

封装参数

安装方式 Solder

引脚数 25

引脚间距 2.77 mm

外形尺寸

高度 12.55 mm

引脚间距 2.77 mm

物理参数

触点材质 Copper Alloy

材质 Steel

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买09663287700
型号: 09663287700
制造商: Harting Technology Group 哈丁电子
描述:Connectors; D-Sub; Standard; 25P MALE IDC METAL SHELL
