09564525613

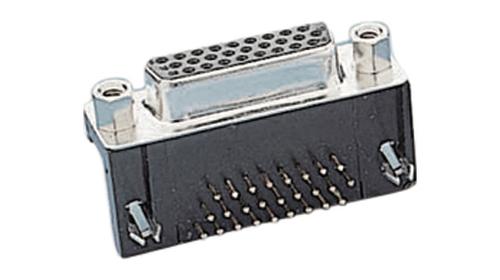

09564525613图片1
09564525613图片2
09564525613图片3
09564525613图片4
09564525613图片5
09564525613概述

HARTING 09564525613 Standard D Sub Connector, 62Contacts, Receptacle, DC, HD Series, Metal Body, Solder

62 位 D-Sub,高密度 插座,母型插口


得捷:
CONN D-SUB HD RCPT 62P R/A SLDR


艾睿:
Conn High Density D-Sub F 62 POS 2.41mm Solder RA Thru-Hole 62 Terminal 1 Port


Allied Electronics:
DSUB HD FE RA 62P S4 4-40 SCREW AND B-LO


Newark:
# HARTING  09564525613  Standard D Sub Connector, 62 Contacts, Receptacle, DC, HD Series, Metal Body, Solder


09564525613中文资料参数规格
技术参数

触点数 62

极性 Female

触点电镀 Gold

额定电流 2 A

绝缘电阻 5000 MΩ

排数 3

针脚数 62

拔插次数 50

额定电流Max 2 A

工作温度Max 105 ℃

工作温度Min -55 ℃

接触电阻Max 20 mΩ

封装参数

安装方式 Solder

外形尺寸

高度 12.93 mm

物理参数

触点材质 Copper Alloy

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买09564525613
型号: 09564525613
制造商: Harting Technology Group 哈丁电子
描述:HARTING 09564525613 Standard D Sub Connector, 62Contacts, Receptacle, DC, HD Series, Metal Body, Solder
