D-Sub标准连接器 25P FMALE R/A BRDLCK 47 pf CLINCH NUT

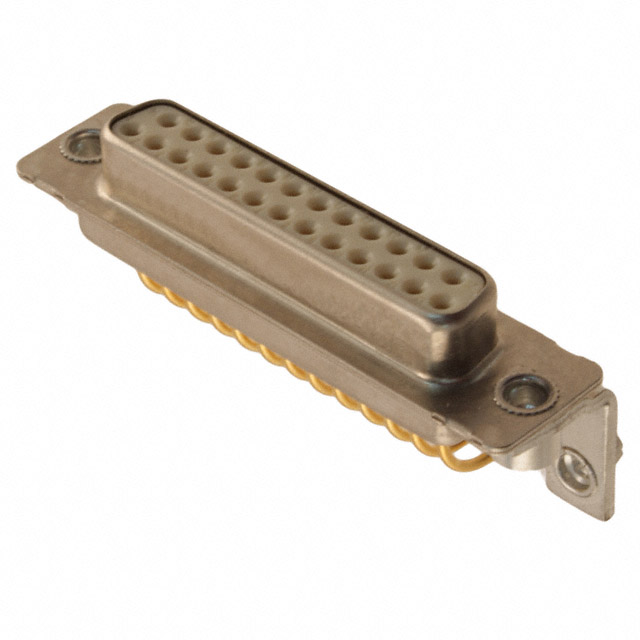

25 Position D-Sub Receptacle, Female Sockets Connector
得捷:
CONN D-SUB RCPT 25POS R/A SLDR
贸泽:
D-Sub标准连接器 25P FMALE R/A BRDLCK 47 pf CLINCH NUT
艾睿:
Conn D-Subminiature F 25 POS 2.77mm Solder RA Thru-Hole 25 Terminal 1 Port
Allied Electronics:
25 way RA Female 47 BLnut4
触点数 25
极性 Female
额定电流 7.5 A
绝缘电阻 1000 MΩ
电容 47.0 pF
排数 2
针脚数 25
接触电阻 10.0 mΩ
拔插次数 500
额定电流Max 7.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 100 V
额定电压 100 V
安装方式 Through Hole
高度 13.55 mm
颜色 Natural
触点材质 Copper Alloy
材质 Steel
工作温度 -20℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
