0512810694

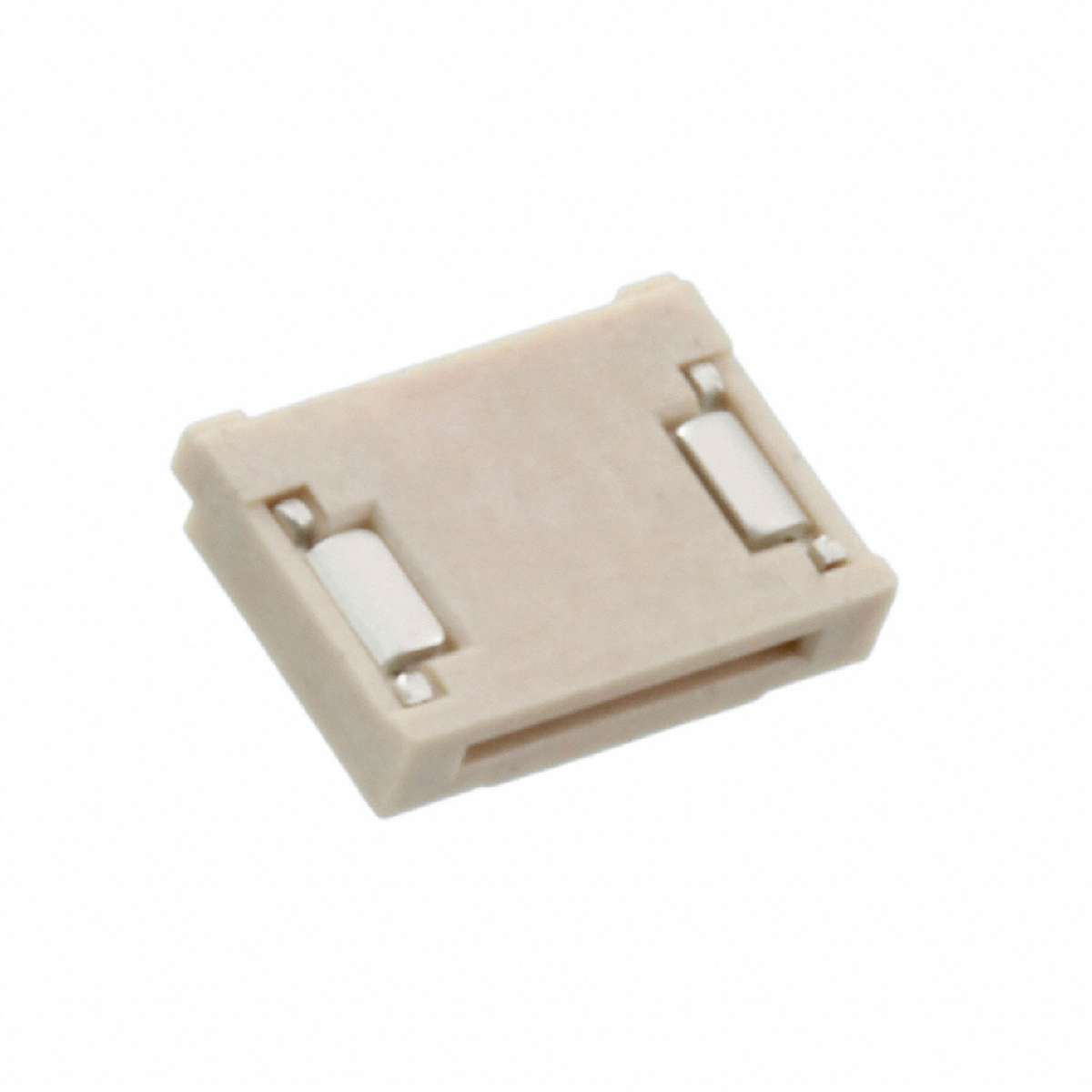

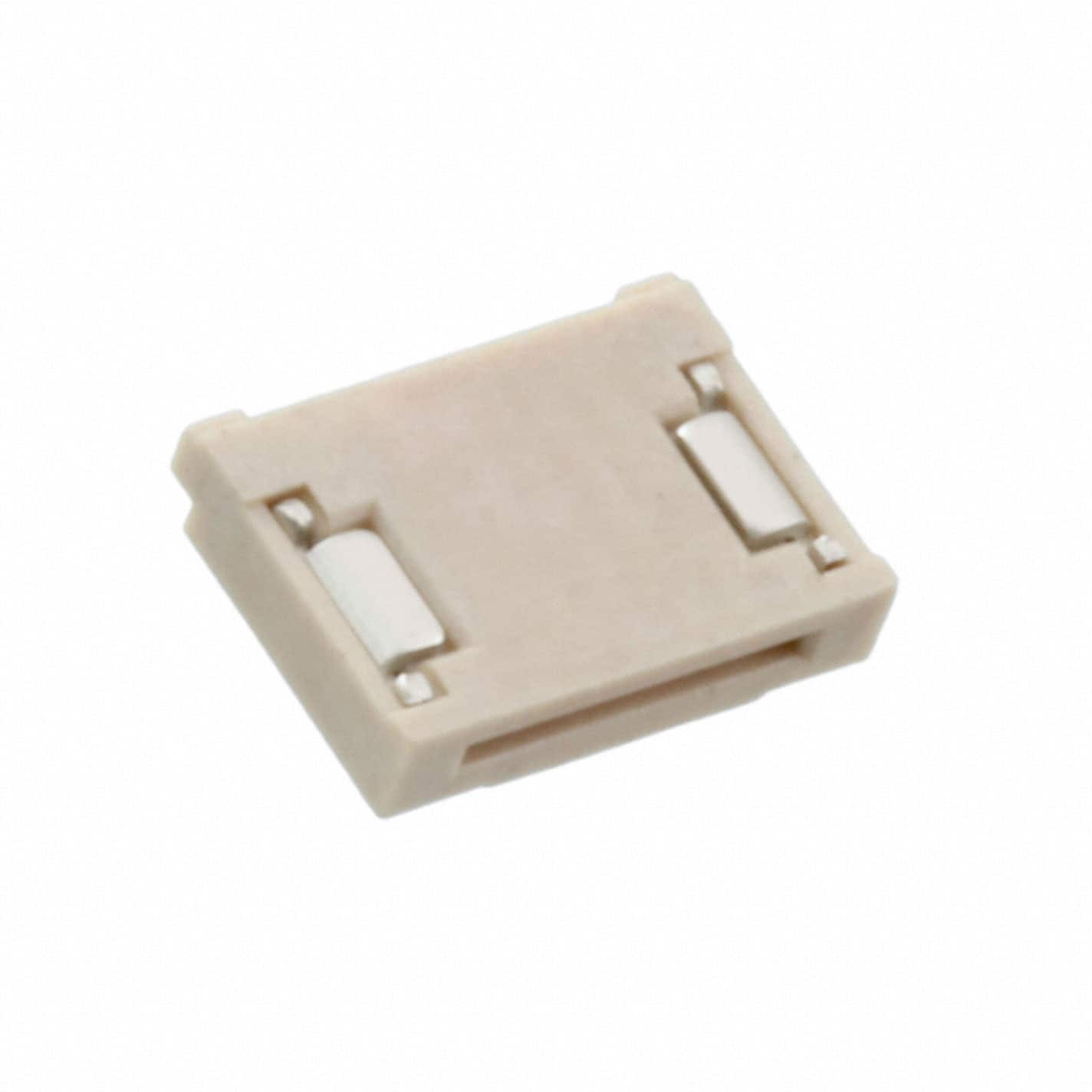

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， SMT ，直角，非ZIF ，双ContactStyle ， 1.20毫米（ 0.047 ” ）插配高度， 6电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, SMT, Right Angle, Non-ZIF, Dual ContactStyle, 1.20mm .047" Mated Height, 6 Circuits, Lead-free, Gold Au Plating

Space can be a limiting factor when designing electronics. "s fpc connector flexible flat cable can help you fit more transmission lines onto a flat, space-saving cable. Its pitch is 0.5 mm. This is a 1-row connector. This socket type connector"s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 50 V. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It uses the solder termination method. This product is 5.1 mm long, 1.2 mm tall and 4.05 mm deep. 0512810694 is housed in natural liquid crystal polymer. This flexible flat cable has an operating temperature of -20 to 85 °C.
