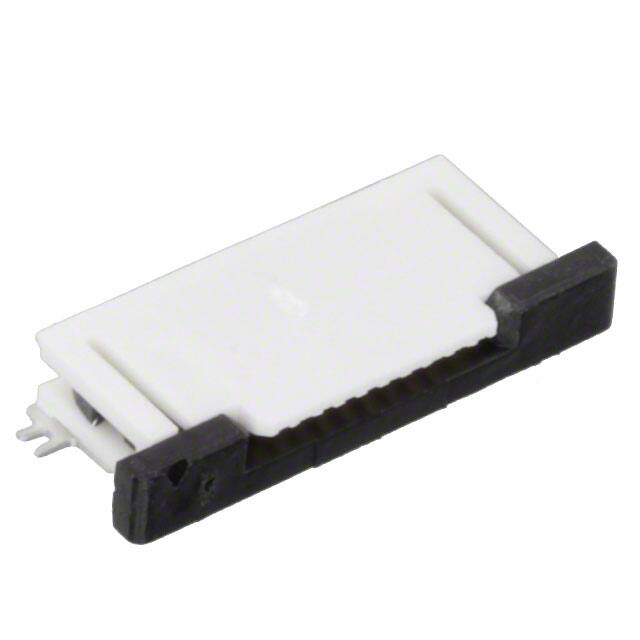

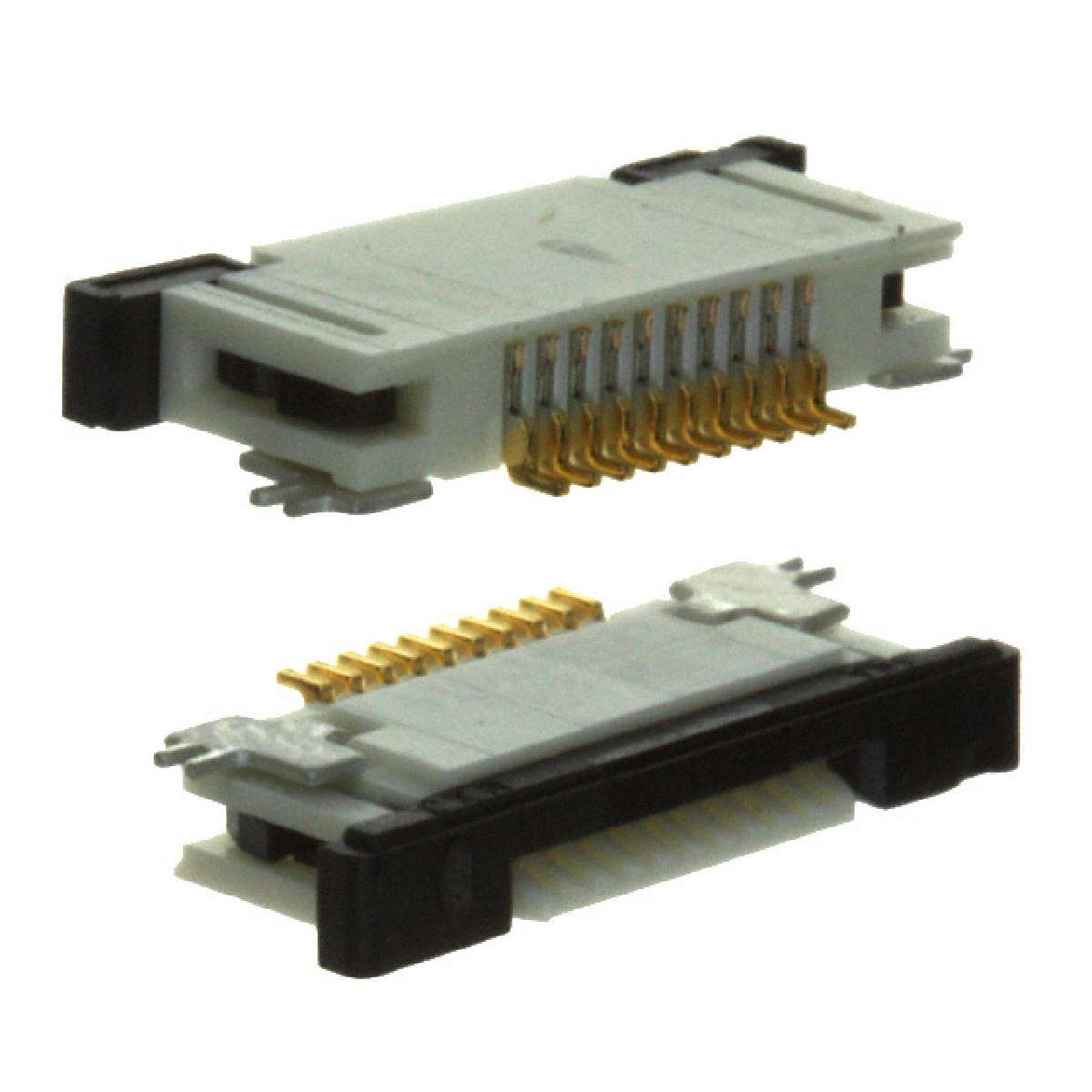

0.50毫米( 0.020 “ )间距FFC / FPC连接器,直角, SMT , ZIF ,顶部触点类型10电路,无铅,金(Au )触点电镀,高阻隔性包装 0.50mm .020" Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Top Contact Style 10 Circuits, Lead-free, Gold Au Contact Plating, High Barrier Packaging
10 位置 - 触点,顶部 0.020"(0.50mm) 表面贴装,直角
得捷:
CONN TOP 10POS 0.5MM R/A
艾睿:
Molex brings you their fpc connector 0527451097 flexible flat cable, a great choice for transmitting multiple transmission channels over a more space-saving design. It has a maximum voltage rating of 50 V. This is a 1-row connector. This socket type connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. Its pitch is 0.5 mm. This device has a maximum current rating of 0.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. 0527451097 is housed in white polyamide 4/6. It uses the solder termination method. This product is 11.1 mm long, 2 mm tall and 5 mm deep. This flexible flat cable has an operating temperature of -40 to 85 °C.
Chip1Stop:
Conn FPC Connector SKT 10 POS 0.5mm Solder RA SMD Embossed T/R
Verical:
Conn FFC/FPC Connector SKT 10 POS 0.5mm Solder RA SMD Easy-On™ T/R
触点数 10
额定电流 0.5 A
绝缘电阻 50 MΩ
排数 1
针脚数 10
拔插次数 20
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 50 V
额定电压 50 V
接触电阻Max 20 mΩ
安装方式 Surface Mount
长度 11.1 mm
宽度 5 mm
高度 2 mm
外壳颜色 White
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
