0528062410

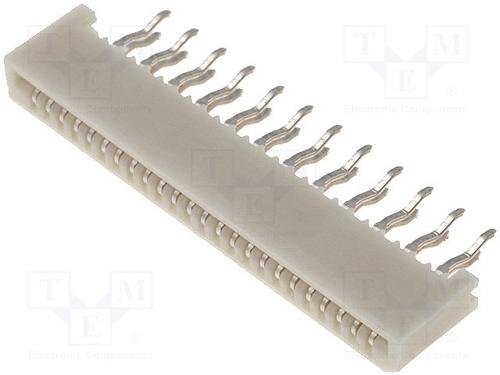

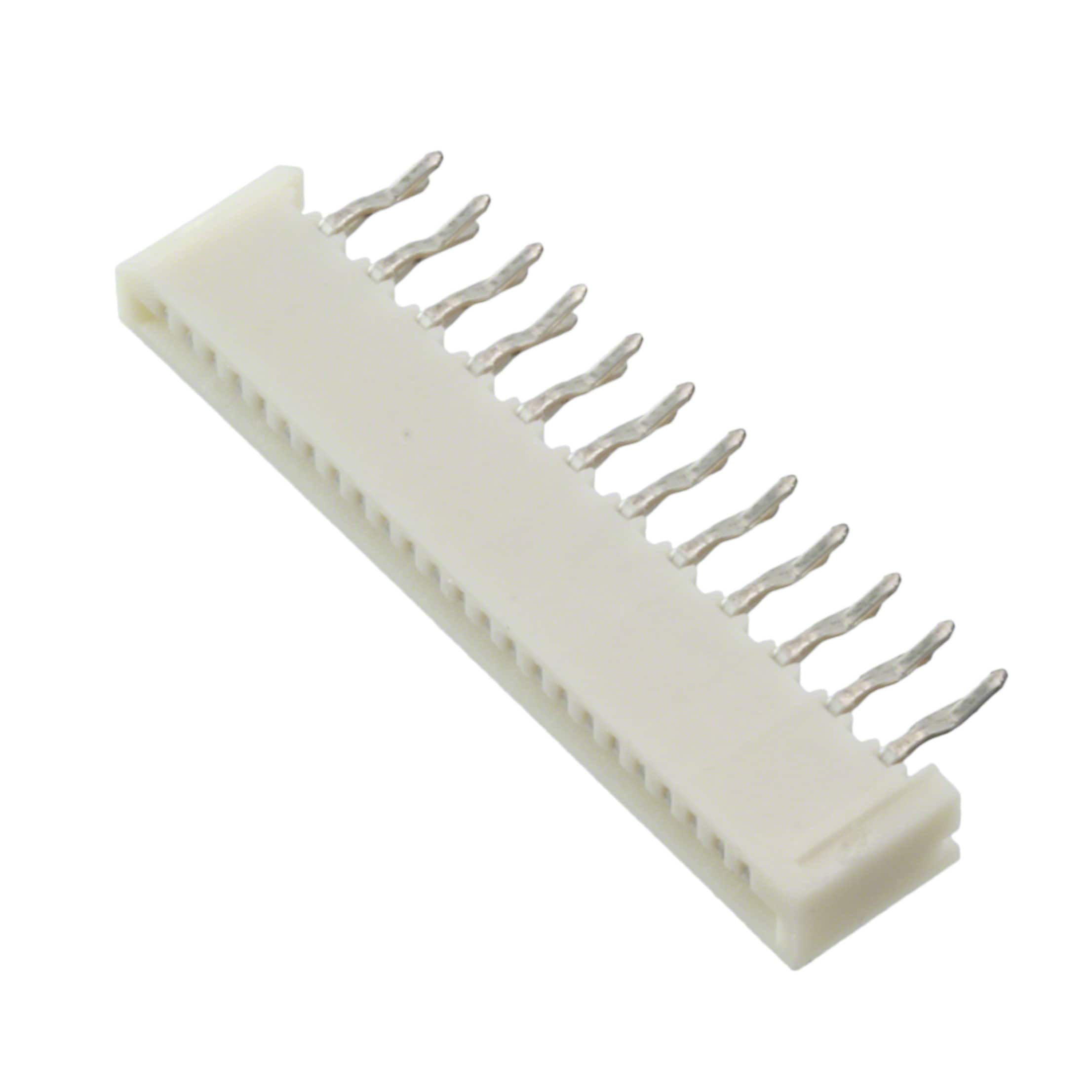

Conn FFC Connector SKT 24POS 2mm Solder ST Thru-Hole Tray

This ffc connector flexible flat cable from is advantageous over traditional spherical wiring because it can hold many transmission channels with limited space. This is a 1-row connector. Its pitch is 1 mm. It has a maximum voltage rating of 50 VDC|50VAC. This socket type connector"s 24 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. The component will be shipped in tray format. 0528062410 is housed in natural polyphenylene sulfide. This product is 27 mm long, 5.4 mm tall and 3 mm deep. This flexible flat cable has an operating temperature of -20 to 80 °C. It uses the solder termination method.
