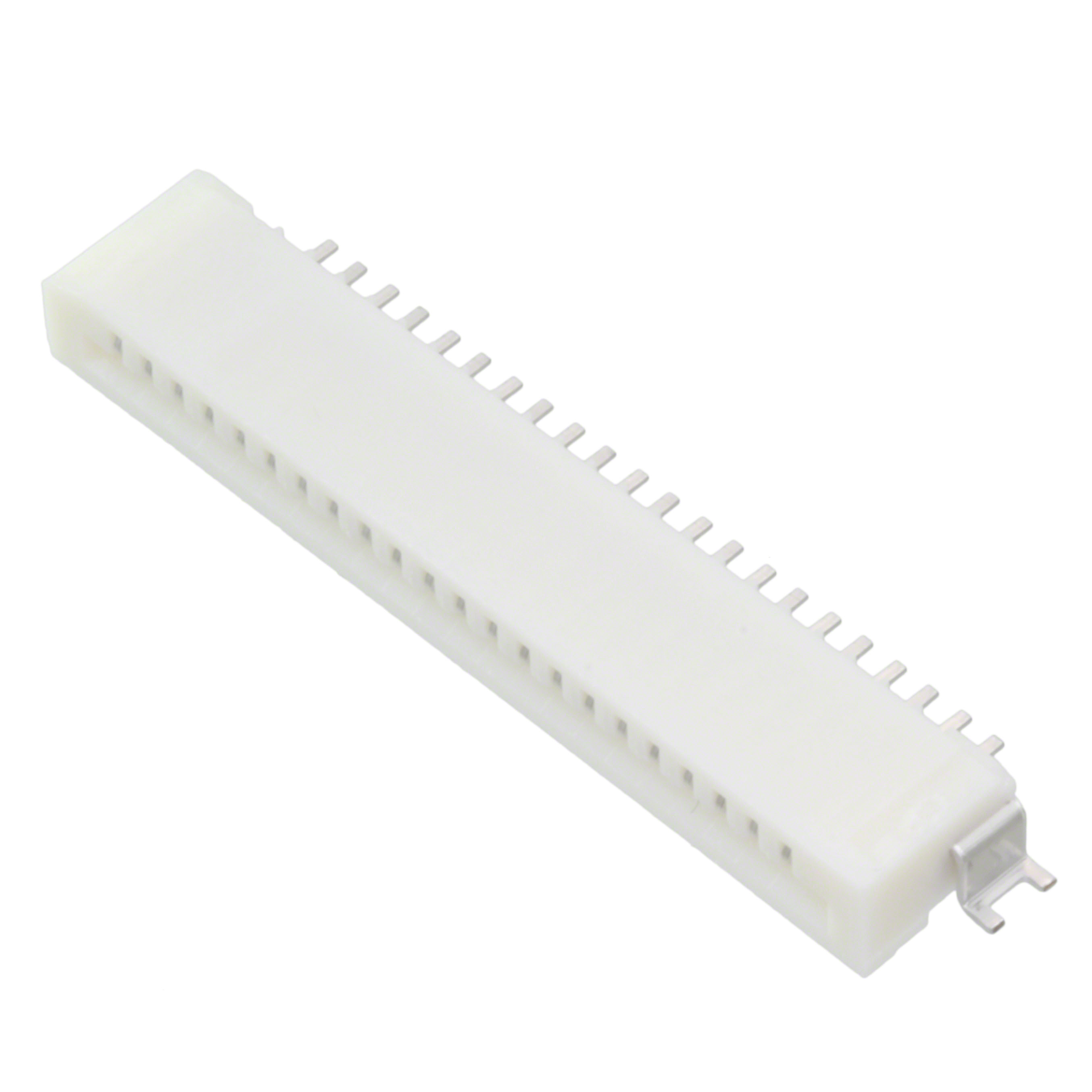

1.00毫米（ .039 “ ）间距直角， SMT ，非ZIF ，顶部触点类型， 22电路，无铅 1.00mm .039" Pitch Right Angle, SMT, Non-ZIF, Top Contact Style, 22 Circuits, Leadfree
22 Position FPC Connector Contacts, Top 0.039" 1.00mm Surface Mount, Right Angle
得捷:
CONN FPC TOP 22POS 1MM R/A
艾睿:
This ffc connector 0527932270 flexible circuit from Molex can operate as a flexible medium between two different planes or decks. It has a maximum voltage rating of 50 V. It has a right angle body orientation. Its pitch is 1 mm. This is a 1-row connector. This female connector&s;s 22 contacts that are made out of phosphor bronze and plated with tin bismuth over nickel. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. 0527932270 is housed in polyphenylene sulfide. This product is 28.3 mm long, 3.1 mm tall and 6.8 mm deep. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C.
Verical:
Conn FFC Connector F 22 POS 1mm Solder RA SMD Easy-On™ T/R
