0528062710

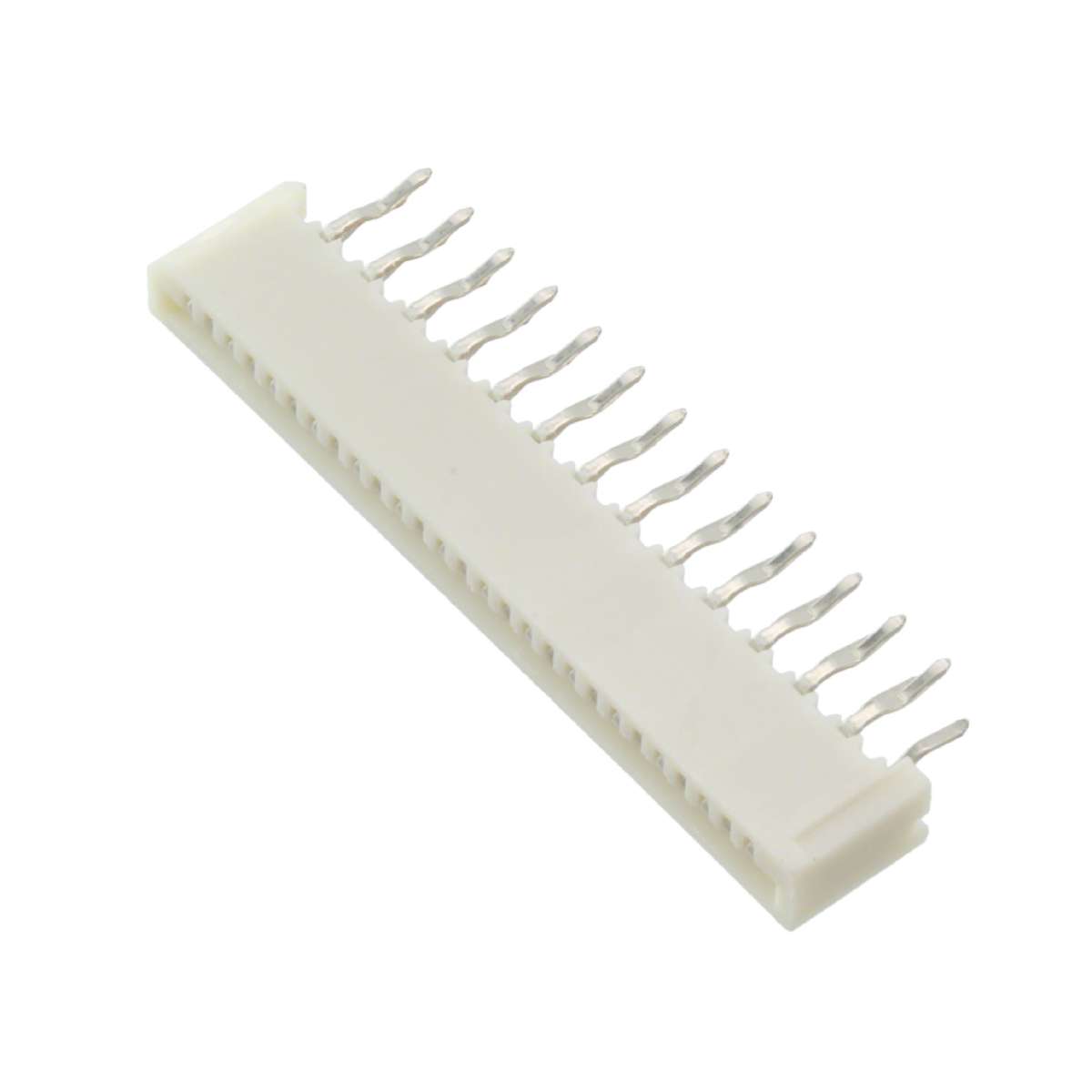

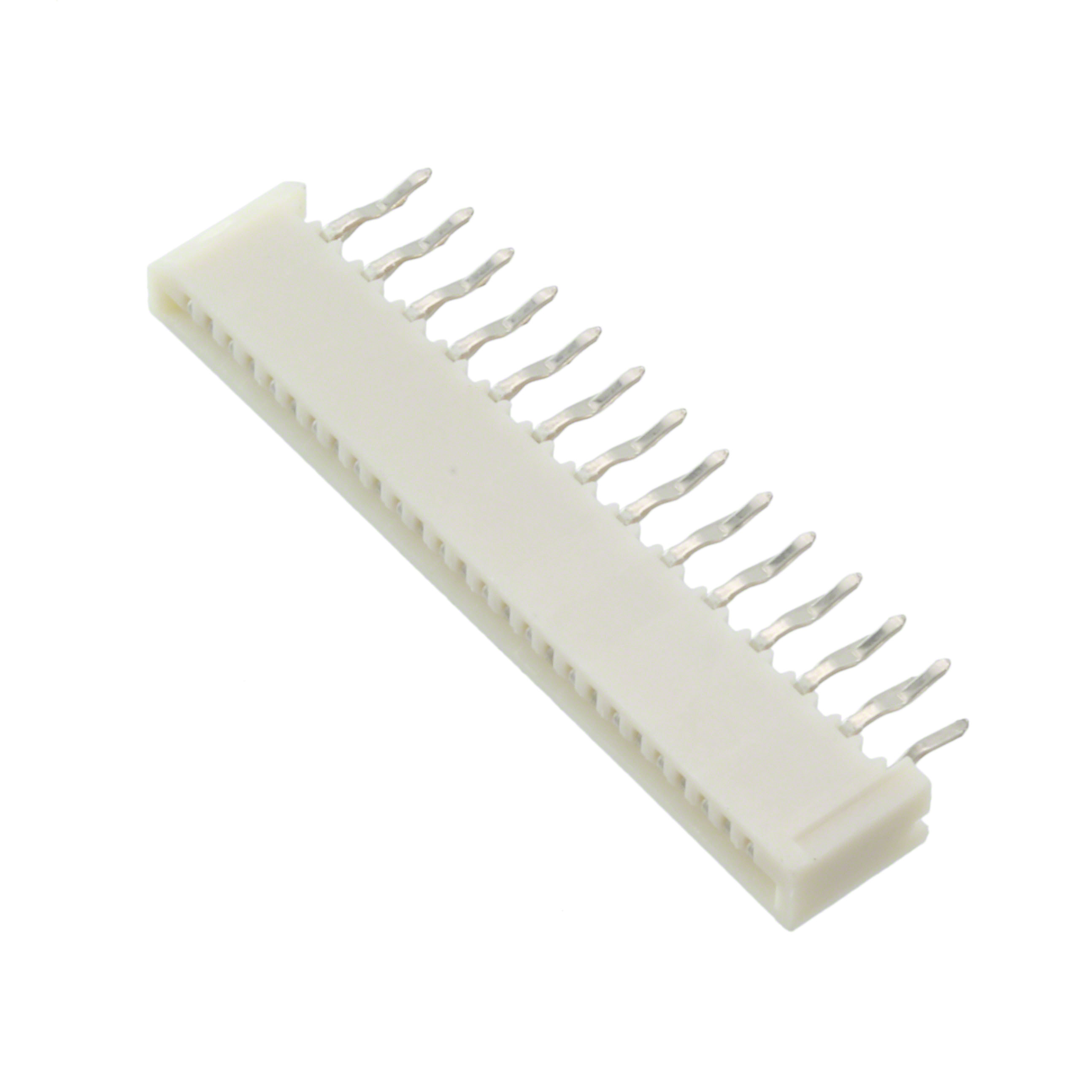

Conn FFC Connector SKT 27POS 1mm Solder ST Thru-Hole Tray

Optimize the design of a space-limited electronic device with this ffc connector flexible printed circuit from . This socket type connector"s 27 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 1 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 80 °C. 0528062710 is housed in natural polyphenylene sulfide. This product is 30 mm long, 5.4 mm tall and 3 mm deep.
