0512811294

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， SMT ，直角，非ZIF ，双ContactStyle ， 1.20毫米（ 0.047 ” ）插配高度， 12电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, SMT, Right Angle, Non-ZIF, Dual ContactStyle, 1.20mm .047" Mated Height, 12 Circuits, Lead-free, Gold Au Plating

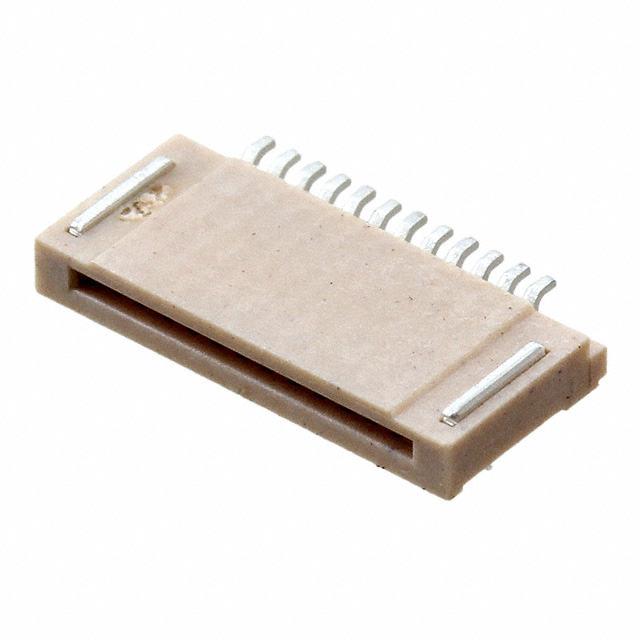

Whether your needs are small or large, this fpc connector flexible flat cable from provides an organized, space-saving alternative to traditional spherical wire. This socket type connector"s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a right angle body orientation. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. This device has a maximum current rating of 0.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 8.1 mm long, 1.2 mm tall and 4.05 mm deep. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C. 0512811294 is housed in natural liquid crystal polymer.
