0525592253

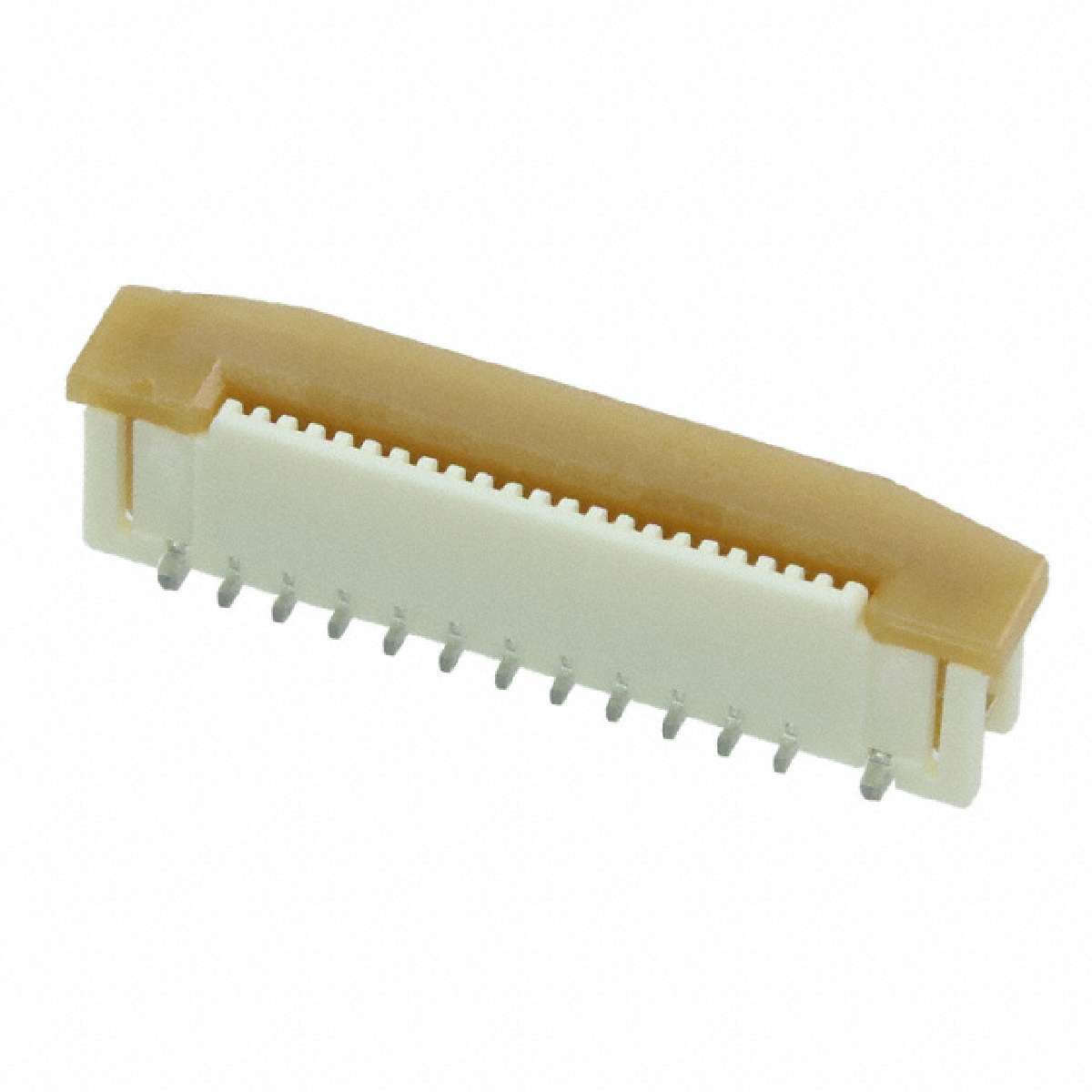

0525592253图片1
0525592253图片2
0525592253图片3
0525592253图片4
0525592253图片5
0525592253图片6
0525592253概述

Conn FPC Connector SKT 22POS 1mm Solder ST SMD Embossed T/R

22 位置 FFC,FPC 触头,垂直 - 单侧 0.020"(0.50mm) 表面贴装型


得捷:
CONN FFC VERT 22POS 0.5MM SMD


艾睿:
As an alternative to traditional spherical wiring, the fpc connector 0525592253 flexible flat cable from Molex can run multiple electrical lines over a flat, ribbon-like cable, essentially saving valuable space. This socket type connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 V. It has a straight body orientation. Its pitch is 0.5 mm. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This flexible flat cable has an operating temperature of -40 to 85 °C. 0525592253 is housed in natural nylon 4/6. It uses the solder termination method. This product is 16.7 mm long, 3.9 mm tall and 3.5 mm deep.


Verical:
Conn FPC Connector SKT 22 POS 0.5mm Solder ST SMD Easy-On™ T/R


0525592253中文资料参数规格
技术参数

触点数 22

额定电流 0.5 A

绝缘电阻 50 MΩ

排数 1

针脚数 22

拔插次数 20

额定电流Max 0.5A/触头

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压Max 50 V

额定电压 50 V

接触电阻Max 20 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 3.9 mm

物理参数

外壳颜色 Natural

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0525592253
型号: 0525592253
制造商: Molex 莫仕
描述:Conn FPC Connector SKT 22POS 1mm Solder ST SMD Embossed T/R
