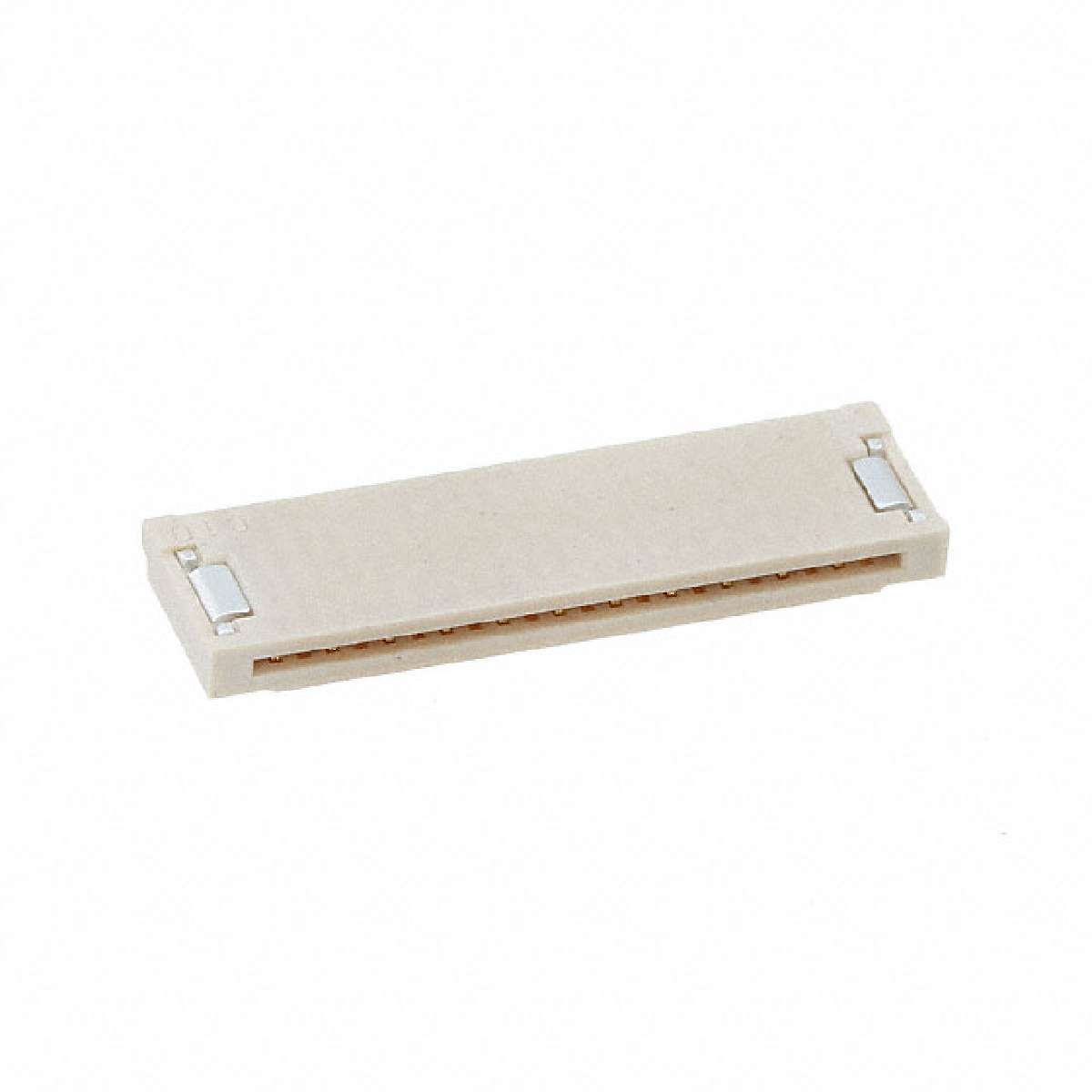

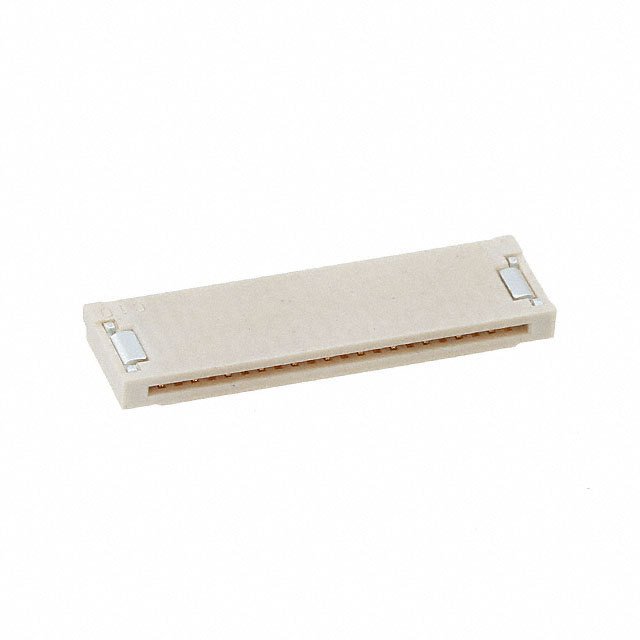

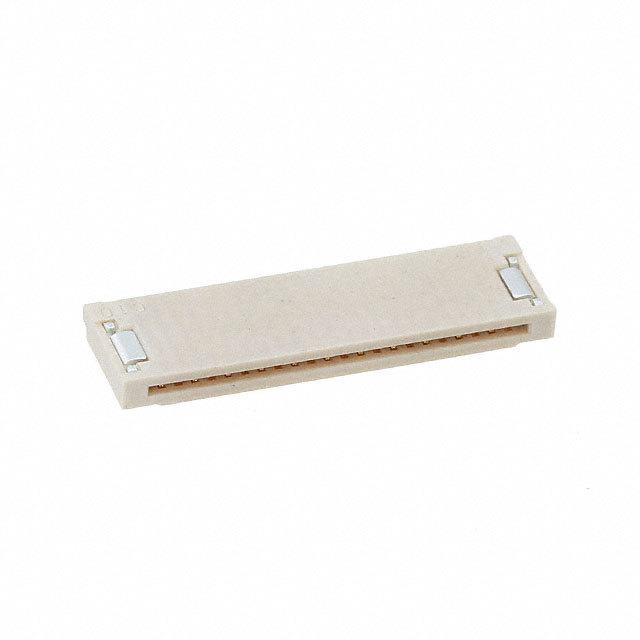

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， SMT ，直角，非ZIF ，双触点式， 1.20毫米（ 0.047 ” ）插配高度， 22电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, SMT, Right Angle, Non-ZIF, Dual Contact Style, 1.20mm .047" Mated Height, 22 Circuits, Lead-free, Gold Au Plating
Whether your needs are small or large, this fpc connector flexible flat cable from provides an organized, space-saving alternative to traditional spherical wire. Its pitch is 0.5 mm. This female connector"s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 50 V. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 13.1 mm long, 1.2 mm tall and 4.05 mm deep. 0512812294 is housed in natural liquid crystal polymer. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C.
