0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， SMT ，直角，非ZIF ，双触点式， 1.20毫米（ 0.047 ” ）插配高度， 18电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, SMT, Right Angle, Non-ZIF, Dual Contact Style, 1.20mm .047" Mated Height, 18 Circuits, Lead-free, Gold Au Plating
18 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" 0.50mm Surface Mount, Right Angle
得捷:
CONN FFC FPC 18POS 0.50MM R/A
艾睿:

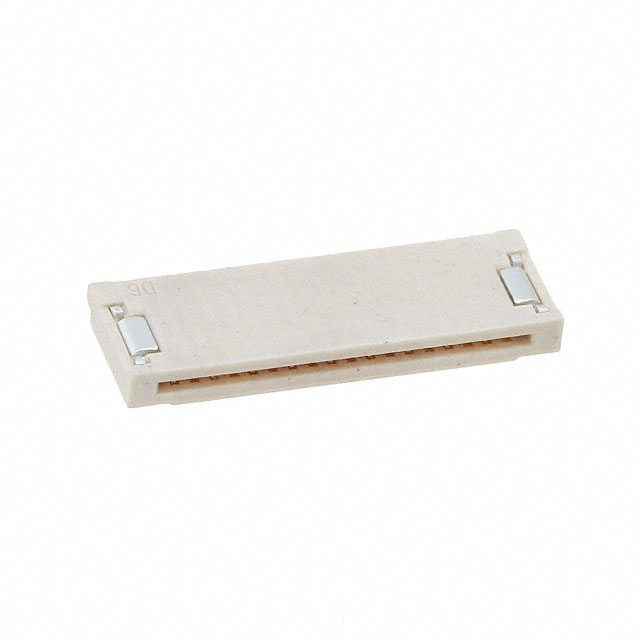

Design your electronic device with FFC technology by implementing this fpc connector 0512811894 flexible flat cable from Molex. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. This is a 1-row connector. This female connector&s;s 18 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C. 0512811894 is housed in natural liquid crystal polymer. This product is 11.1 mm long, 1.2 mm tall and 4.05 mm deep.
