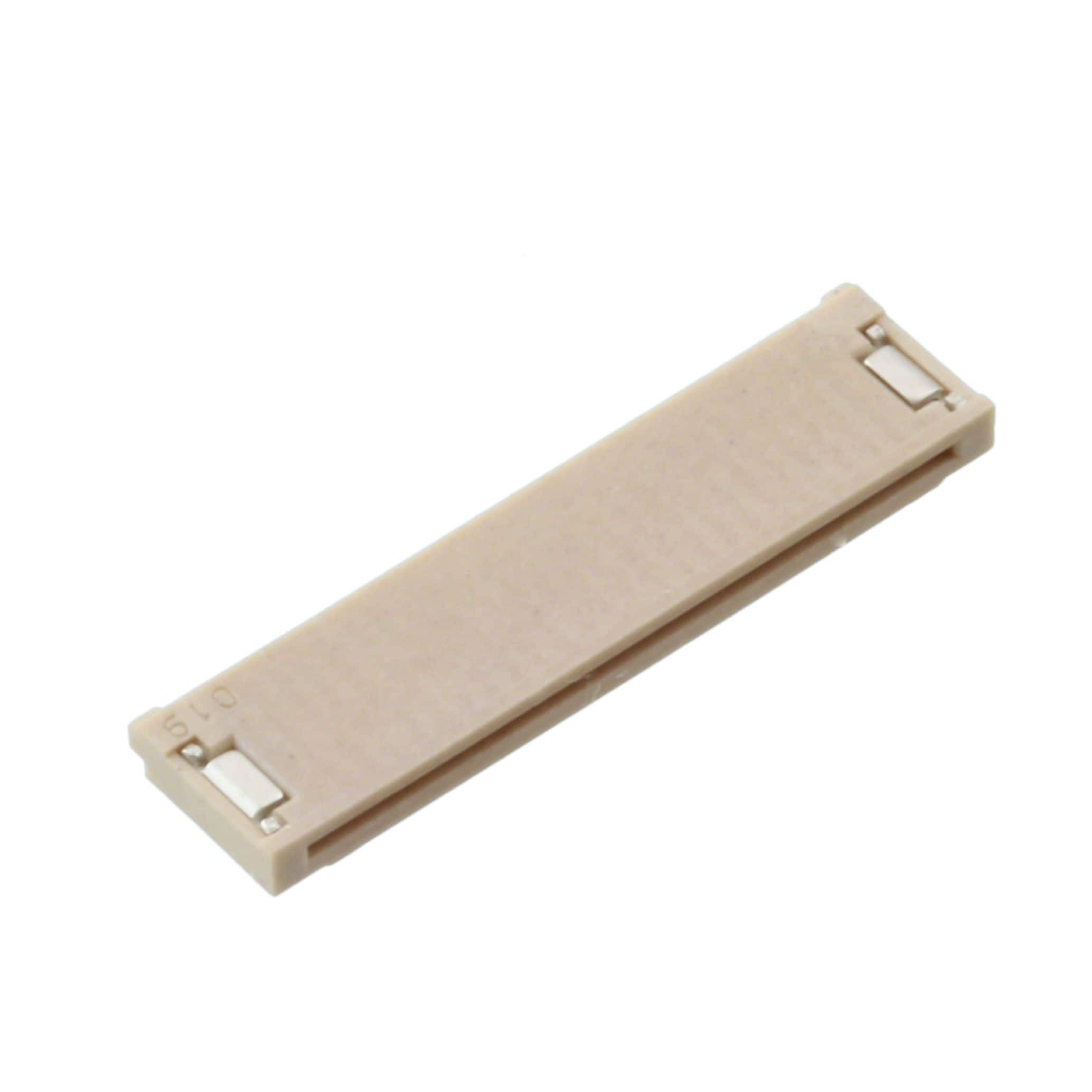

CONN FFC/FPC 26POS 0.5MM SMD R/A
26 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" 0.50mm Surface Mount, Right Angle
得捷:
CONN FFC FPC 26POS 0.5MM R/A
艾睿:
If you are in need of a flexible, ribbon-like cable that can run multiple lines across your project, look no further than fpc connector 0512812694 flexible flat cable from Molex. This socket type connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 V. This is a 1-row connector. Its pitch is 0.5 mm. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. This product is 15.1 mm long, 1.2 mm tall and 4.05 mm deep. 0512812694 is housed in natural liquid crystal polymer. This flexible flat cable has an operating temperature of -20 to 85 °C.
