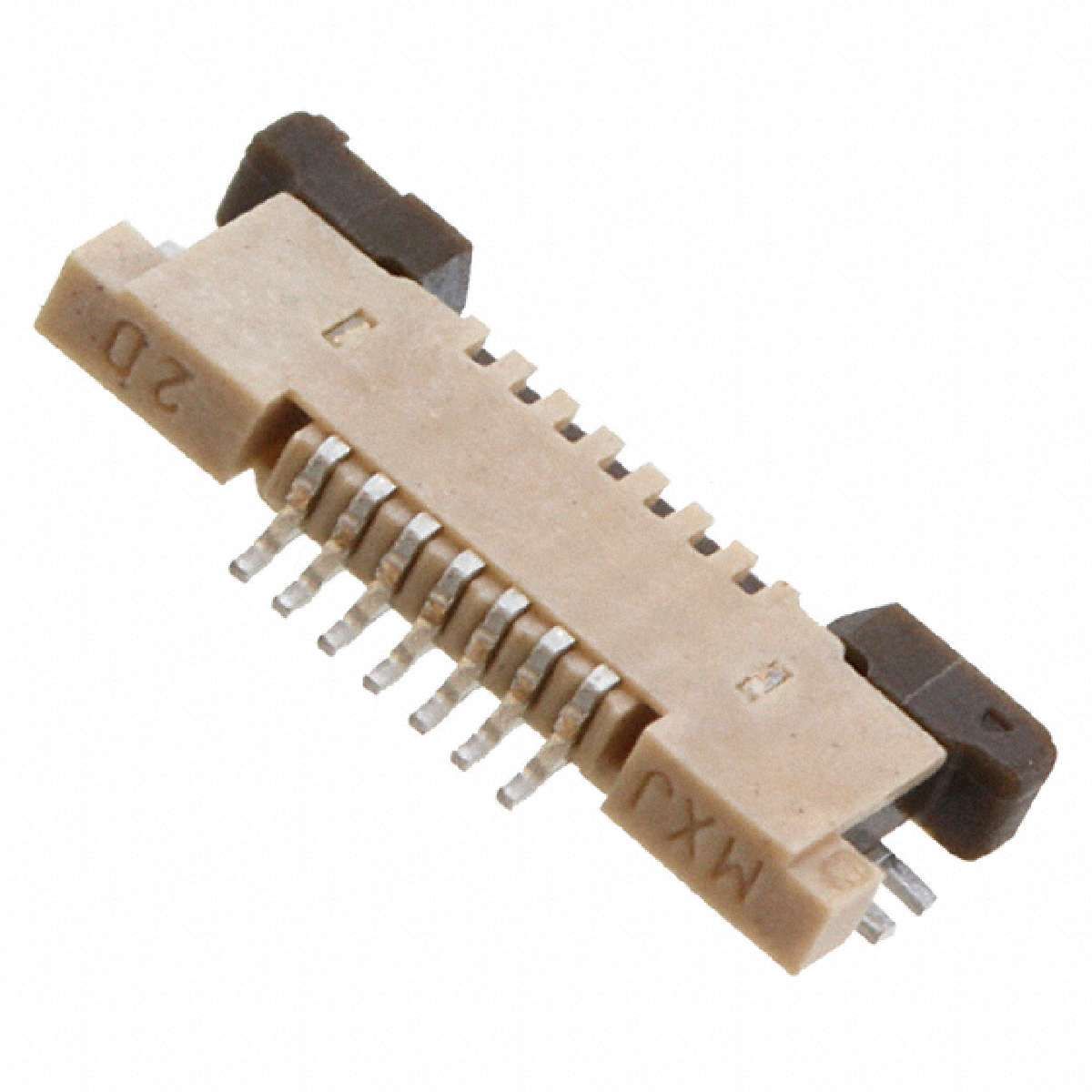

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMT ， ZIF ，顶端联系方式， 7电路，金（Au ）触点电镀 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMT,ZIF, Top Contact Style, 7 Circuits, Gold Au Contact Plating
7 Position FFC, FPC Connector Contacts, Top 0.020" 0.50mm Surface Mount, Right Angle
得捷:
CONN FFC FPC TOP 7POS 0.5MM R/A
艾睿:
Use this fpc connector 0545500771 flexible flat cable from Molex in tightly constrained electronics projects. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. It has a right angle body orientation. This is a 1-row connector. This female connector&s;s 7 contacts that are made out of phosphor bronze and plated with gold over nickel. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. 0545500771 is housed in liquid crystal polymer. It uses the solder termination method. This flexible flat cable has an operating temperature of -40 to 85 °C. This product is 8.7 mm long, 1.2 mm tall and 3.85 mm deep.
