0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMT ， 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMT,
5 Position FFC, FPC Connector Contacts, Bottom 0.020" 0.50mm Surface Mount, Right Angle
得捷:
CONN FFC BOTTOM 5POS 0.5MM R/A
艾睿:

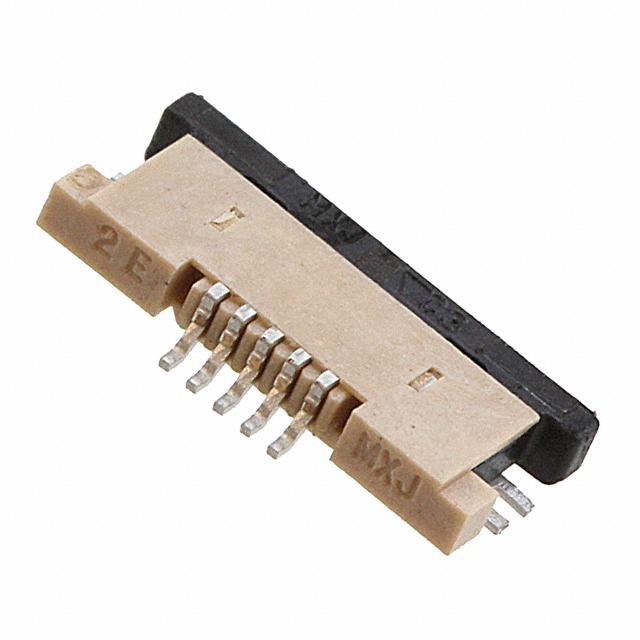

Space can be a limiting factor when designing electronics. Molex&s;s fpc connector 0545480571 flexible flat cable can help you fit more transmission lines onto a flat, space-saving cable. This is a 1-row connector. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. This socket type connector&s;s 5 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 7.7 mm long, 1.2 mm tall and 3.85 mm deep. 0545480571 is housed in black liquid crystal polymer. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C.
