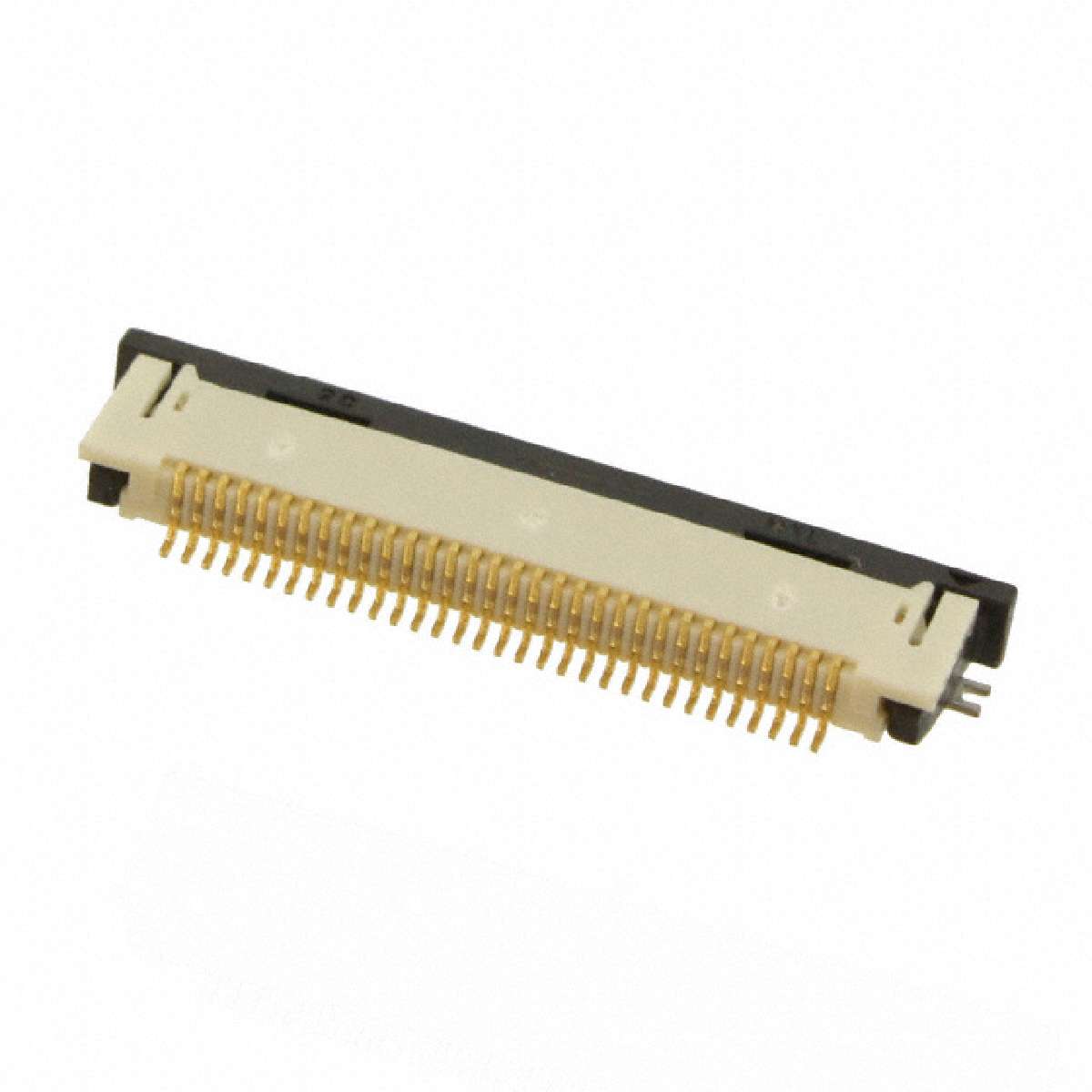

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器，直角， SMT ， ZIF ，底部ContactStyle ， 32电路，为0.1μm （ 4μ ”），金（Au ）触点电镀 0.50mm .020" Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom ContactStyle, 32 Circuits, 0.1μm 4μ" Gold Au Contact Plating
Utilize FFC technology with this fpc connector flexible flat cable from which can hold many transmission channels on a very narrow, very flat ribbon-like structure. Its pitch is 0.5 mm. This socket type connector"s 32 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 50 V. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 21.5 mm long, 2 mm tall and 5.6 mm deep. It uses the solder termination method. 0541323262 is housed in black nylon 4/6.
