0522070960

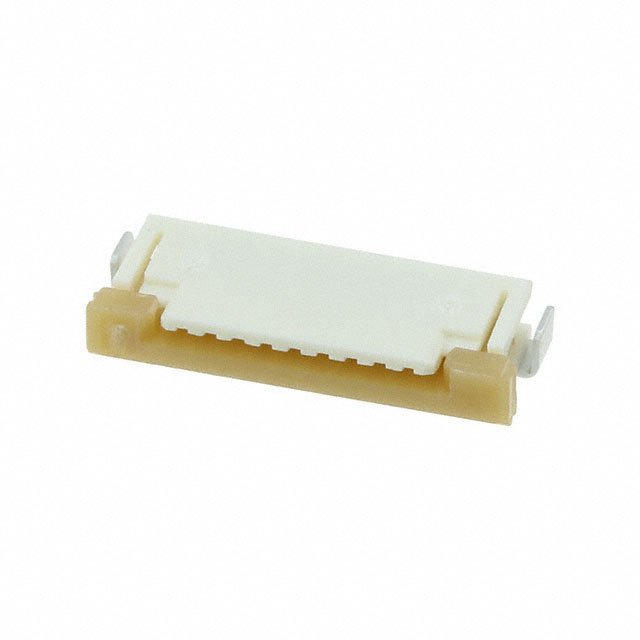

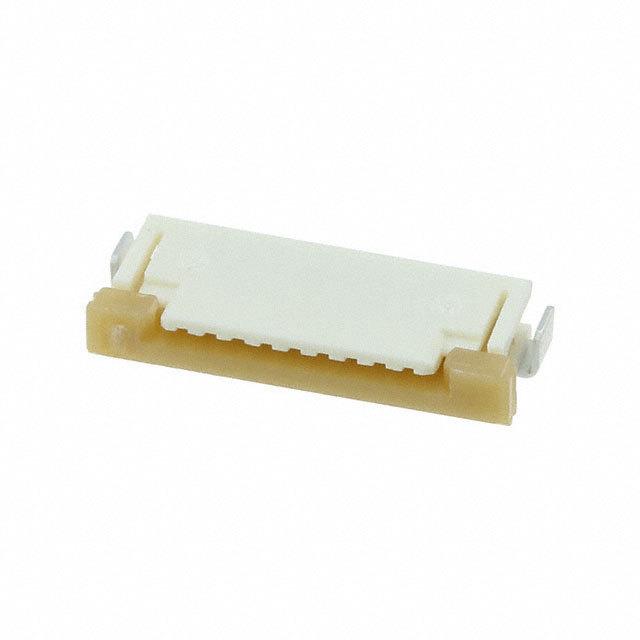

1.00毫米（ .039 “ ）间距FFC / FPC连接器， SMT ，直角， ZIF ，顶部触点类型插座， 9电路，无铅，金触点电镀，高阻隔性包装 1.00mm .039" Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact Style Receptacle, 9 Circuits, Lead-free, Gold Contact Plating, High Barrier Packaging

This ffc/fpc connector flexible flat cable from is advantageous over traditional spherical wiring because it can hold many transmission channels with limited space. It has a right angle body orientation. It has a maximum voltage rating of 125 V. Its pitch is 1 mm. This socket type connector"s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This flexible flat cable has an operating temperature of -30 to 85 °C. This product is 15.3 mm long, 2.7 mm tall and 7.6 mm deep. 0522070960 is housed in natural nylon 4/6. It uses the solder termination method.
