0541323862

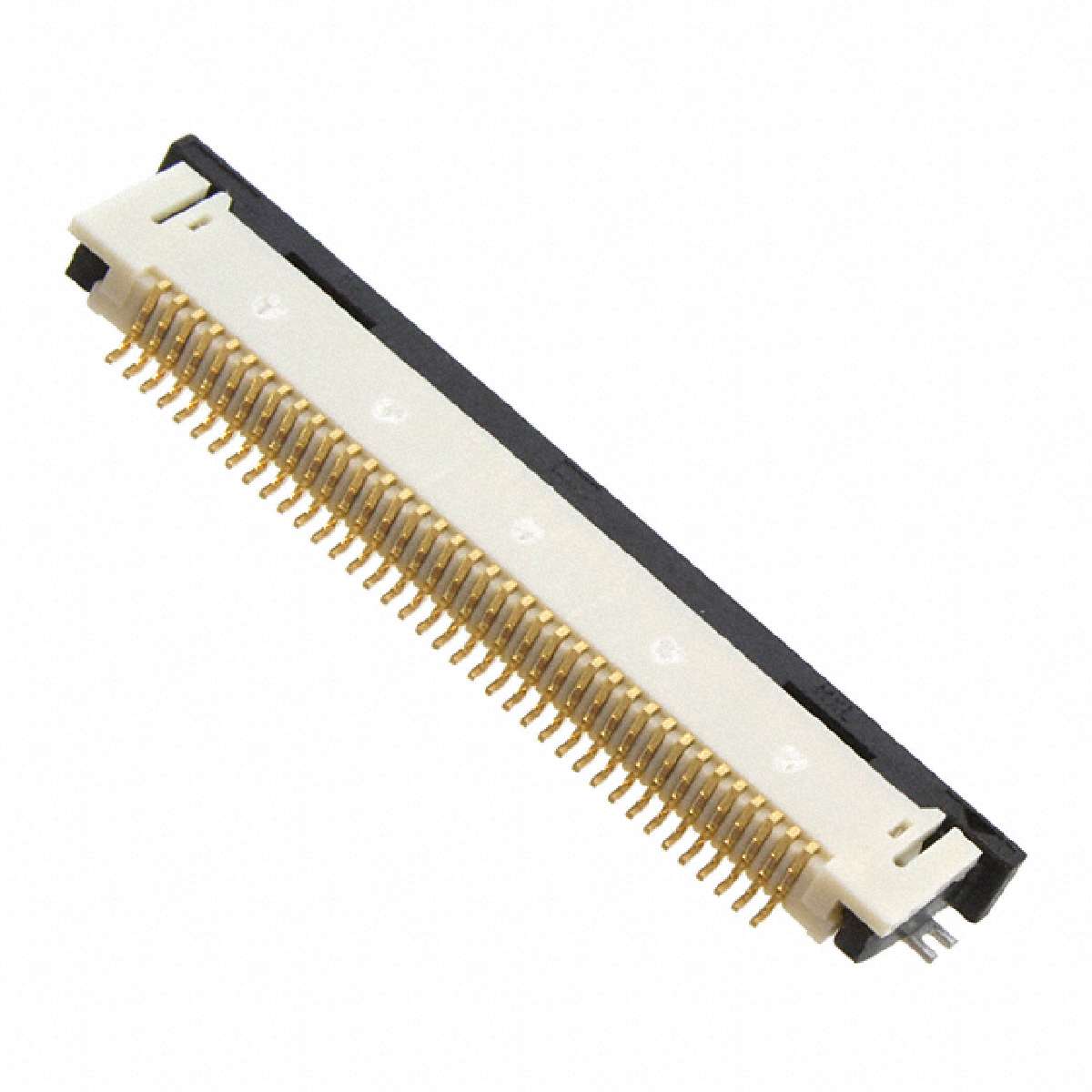

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器，直角， SMT ， ZIF ，底部触点类型， 38电路，为0.1μm （ 4μ ”），金（Au ）触点电镀 0.50mm .020" Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom Contact Style, 38 Circuits, 0.1μm 4μ" Gold Au Contact Plating

38 Position FFC, FPC Connector Contacts, Bottom 0.020" 0.50mm Surface Mount, Right Angle

得捷:
CONN FFC BOTTOM 38POS 0.5MM R/A

艾睿:
Utilize FFC technology with this fpc connector 0541323862 flexible flat cable from Molex which can hold many transmission channels on a very narrow, very flat ribbon-like structure. Its pitch is 0.5 mm. This is a 1-row connector. It has a maximum voltage rating of 50 V. This socket type connector&s;s 38 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It uses the solder termination method. This product is 24.5 mm long, 2 mm tall and 5.6 mm deep. This flexible flat cable has an operating temperature of -20 to 85 °C. 0541323862 is housed in black nylon 4/6.

安富利:
Conn FPC Connector SKT 38 POS 0.5mm Solder RA SMD Embossed T/R
