0520452645

1.25毫米（ .049 “ ）垂直，非ZIF插座， 26电路 1.25mm .049" Vertical, Non-ZIF Receptacle, 26 Circuits

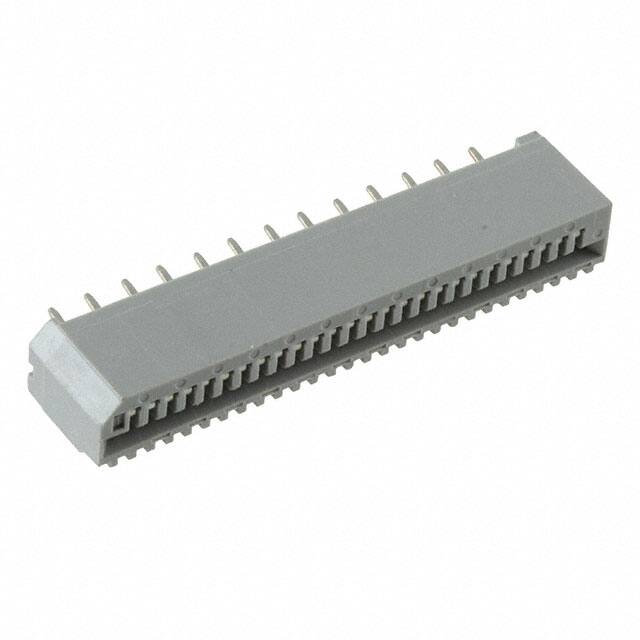

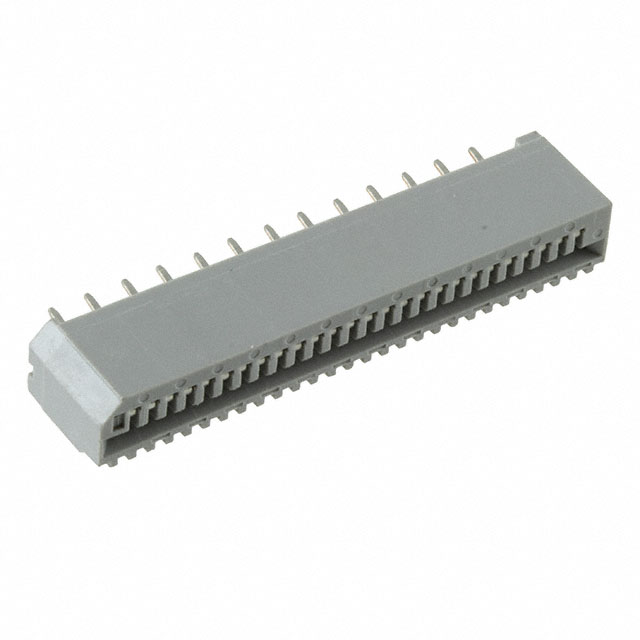

Optimize the design of a space-limited electronic device with this ffc/fpc connector flexible flat cable from . It has a maximum voltage rating of 200 V. This is a 1-row connector. This socket type connector"s 26 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. Its pitch is 1.25 mm. This device has a maximum current rating of 1 A/contact. This component will be shipped in tray format. This product is 35.9 mm long, 8 mm tall and 5.6 mm deep. 0520452645 is housed in gray polyester. This flexible flat cable has an operating temperature of -40 to 85 °C. It uses the solder termination method.
