0545480871

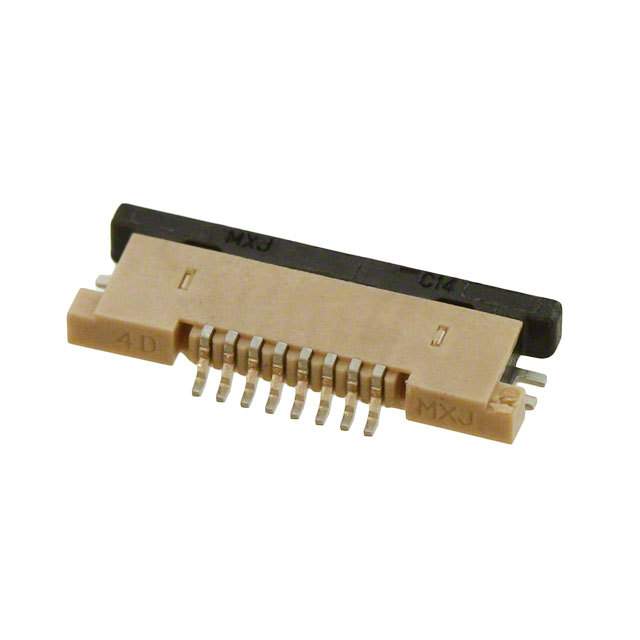

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMT ， ZIF ，底部接触式， 8电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMT,ZIF, Bottom Contact Style, 8 Circuits, Lead-free, Gold Au Plating

Thanks to "s fpc connector flexible flat cable, you can keep the size of your project and the number of disorganized electrical lines down to a minimum. Its pitch is 0.5 mm. This socket type connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 50 V. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It uses the solder termination method. This product is 9.2 mm long, 1.2 mm tall and 3.85 mm deep. This flexible flat cable has an operating temperature of -20 to 85 °C. 0545480871 is housed in black liquid crystal polymer.
