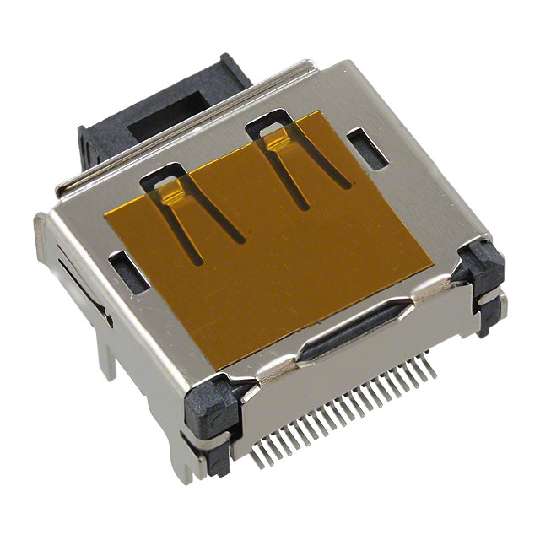

0.50毫米（ 0.020 “ ）间距的DisplayPort *男插座，直角， SMT ， 0.76μm （ 30μ ”），金（Au ）镀层， 20电路，带盖，闭锁孔，麦拉，PEG ，壳牌焊片，没有法兰 0.50mm .020" Pitch DisplayPort* Male Receptacle, Right Angle, SMT, 0.76μm 30μ"Gold Au Plating, 20 Circuits, with Cover, Latch Holes, Mylar, Peg, Solder Tab of Shell,without Flange
Need to connect video and sound in your application? Look no further and use this display port audio and video connector from . This RCP connector"s 20 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. It has a right angle body orientation. It has a maximum voltage rating of 40 VAC. Its pitch is 0.5 mm. This connector has a single port. This device has a maximum current rating of 0.5 A/contact. 0472720024 is housed in thermoplastic. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This part has a minimum operating temperature of -20 °C and a maximum of 85 °C. This product is 17.79 mm long, 6.65 mm tall and 14.39 mm deep. Its 20 terminals use the solder termination method.
