031-10152-RFX

031-10152-RFX图片1
031-10152-RFX图片2
031-10152-RFX图片3

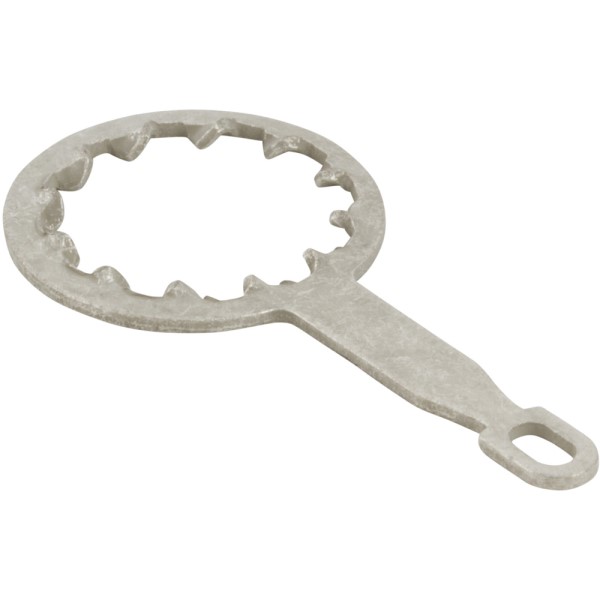

031-10152-RFX图片4
031-10152-RFX概述

连接器配件, Grounding Lug, BNC同轴连接器

Front Mount Mounting Type, 50 ohms Resistance, 0.961 in. Length, 0.578 in. Height, Grounding Lugs

** Note:** These connectors meet or exceed military specification, but aren"t on the QPL and are intended for commercial use only. Military specification numbers, where shown, are for reference only. Two distinct types of 75 Ohm BNC are available, both mate with each other and with 50 Ohm BNCs. Type 1 is designated 75-T1 and provides constant 75 Ohm performance with low VSWR DC to 4 GHz. Type 2 is designated 75-T2 and is usable with low reflection DC to 1 GHz. For applications above 1 GHz, Type 1 is recommended.

031-10152-RFX中文资料参数规格
外形尺寸

长度 24.4094 mm

高度 0.578 in

直径 9.52 mm

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538908080

数据手册

在线购买031-10152-RFX
型号: 031-10152-RFX
描述:连接器配件, Grounding Lug, BNC同轴连接器
替代型号031-10152-RFX
型号/品牌 代替类型 替代型号对比

031-10152-RFX

Amphenol 安费诺

当前型号

当前型号

31-10152-RFX

安费诺

功能相似

031-10152-RFX和31-10152-RFX的区别
