AD632AHZ

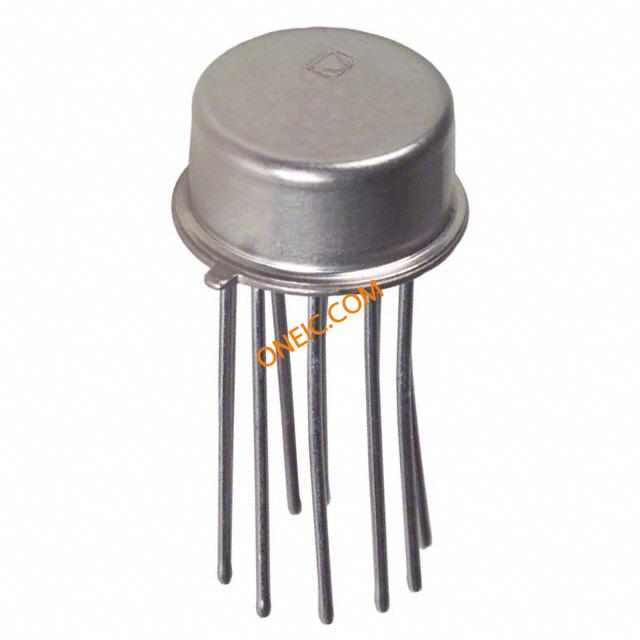

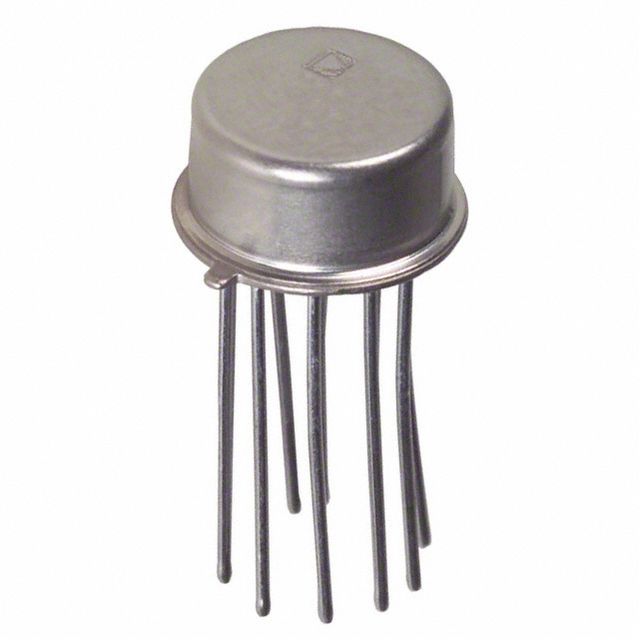

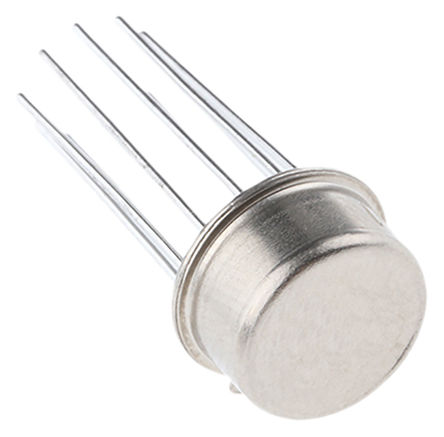

ANALOG DEVICES  AD632AHZ  芯片, 模拟乘法器, 精密型, 單片, TO100-10

模拟乘法器, Analog Devices

一系列 Analog Devices 的模拟乘法器和除法器，适用于各种信号处理应用。 提供两象限和四象限型号，提供通孔和 SMT 页选项。 这些设备的典型应用包括差分比和百分比计算、代数和三角函数合成、精确电压控制的振荡器和过滤器、调制器和解调器、增益控制和有效值至直流转换。

### 模拟乘法器

得捷:
IC PREC MULTIPLIER MONO TO100-10

立创商城:
AD632AHZ

欧时:
Analog Devices AD632AHZ 分压器和电压倍增器, 单端输出, 4个象限, 最高1 MHz, 10引脚 TO-100封装

贸泽:
Multipliers / Dividers Internally Trimmed Prec IC Mult

e络盟:
芯片, 模拟乘法器, 精密型, 單片, TO100-10

艾睿:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube

安富利:
The AD632 is an internally trimmed monolithic four-quadrant multiplier/divider. The AD632B has a maximum multiplying error of ±0.5% without external trims.Excellent supply rejection, low temperature coefficients, and long-term stability of the on-chip thin film resistors and buried zener reference preserve accuracy even under adverse conditions. The simplicity and flexibility of use provide an attractive alternative approach to the solution of complex control functions.The AD632 is pin-for-pin compatible with the industry standard AD532 but with improved specifications and a fully differential high impedance Z input. The AD632 is capable of providing gains of up to ×10, frequently eliminating the need for separate instrumentation amplifiers to precondition the inputs. The AD632 can be effectively employed as a variable gain differential input amplifier with high common-mode rejection. The effectiveness of the variable gain capability is enhanced by the inherent low noise of the AD632 at 90 µV rms.

Chip1Stop:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube

Verical:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube

Newark:
# ANALOG DEVICES  AD632AHZ  ANALOG MULTIPLIER, 20V/uS, TO-100-10

罗切斯特:
Analog Multiplier Or Divider, 1MHz Band Width, BIPolar, MBCY10

DeviceMart:
IC PREC MULTIPLIER MONO TO100-10
