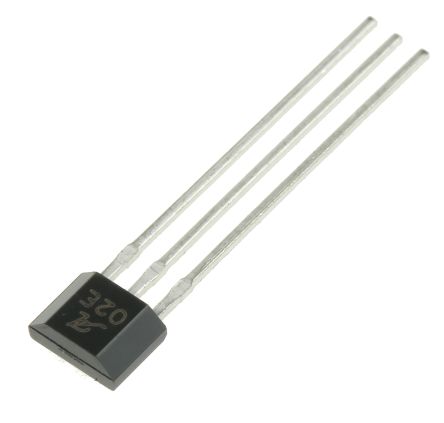

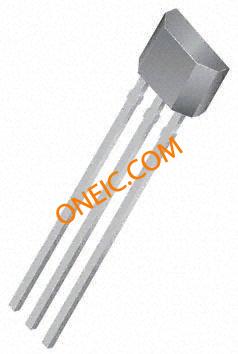

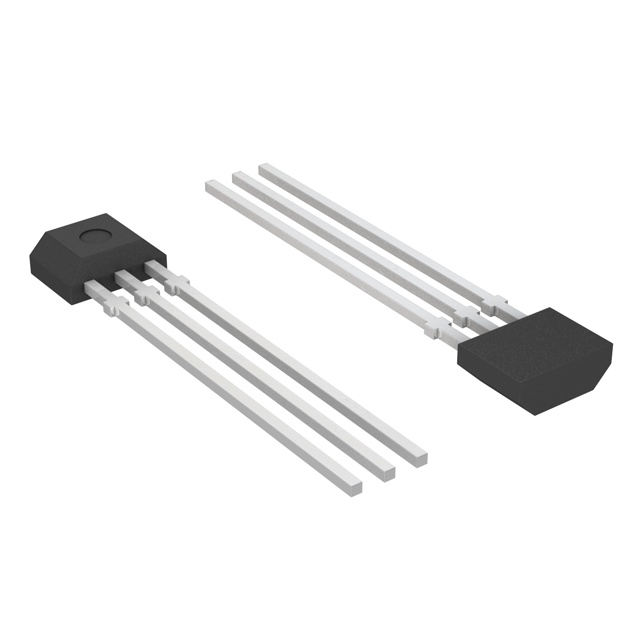

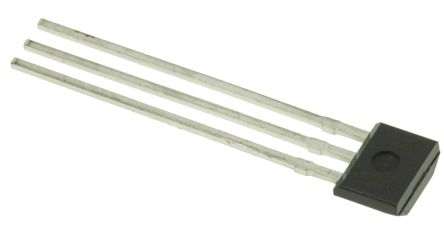

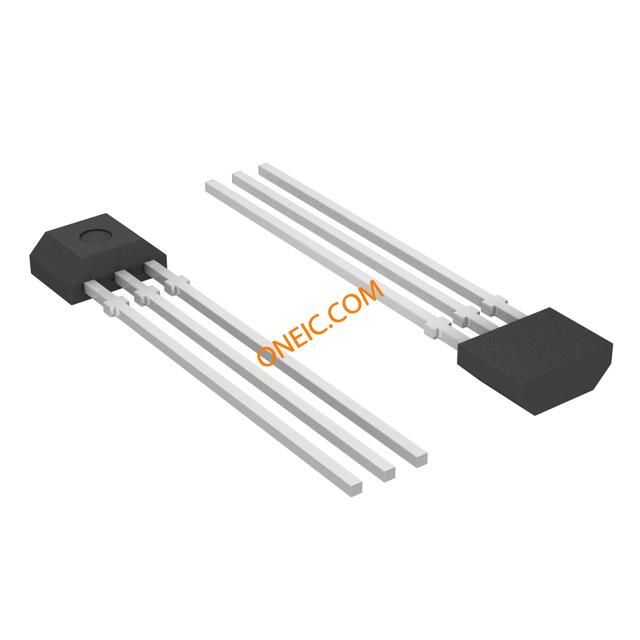

ALLEGRO MICROSYSTEMS A1102EUA-T 霍尔效应开关, 单极开关, 开关, 180 G, 125 G, 3.8 V, 24 V, SIP
A1101/2/3/4/6 Hall Effect Sensor Switch, Allegro Microsystems
The Allegro A1101/2/3/4 and A1106 Hall-effect switches are produced with BiCMOS technology enabling fast power-on time and low-noise operation. Device programming is performed after packaging, to ensure increased switch-point accuracy by eliminating offsets that could be induced by package stress.
Unique Hall element geometries and low offset amplifiers minimise noise and to reduce the residual offset voltage normally caused by device over-molding and thermal stress.
The Allegro A1101/2/3/4 and A1106 a voltage regulator, Hall voltage generator, small-signal amplifier, Schmitt trigger, and NMOS output transistor.
The integrated voltage regulator permits operation from 3.8 V to 24 V and on-board protection circuitry provides a ±30 V absolute maximum voltage rating. All devices in the family are identical except for magnetic switchpoint levels.
Continuous-time operation with fast power-on time and low noise
Stable operation over full operating temperature range
Reverse battery protection
Solid-state reliability
Factory-programmed at end of line for optimum performance
Robust EMC performance
High ESD rating
Regulator stability without a bypass capacitor
### 霍尔效应传感器,Allegro Microsystems
电源电压DC 3.80V min
输出电流 25 mA
供电电流 7.5 mA
输出电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.8V ~ 24V
电源电压Max 24 V
电源电压Min 3.8 V
安装方式 Through Hole
引脚数 3
封装 SIP-3
长度 4.09 mm
宽度 1.52 mm
高度 3.02 mm
封装 SIP-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 电机驱动与控制, 车用, Automotive, Sensing & Instrumentation, 传感与仪器, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A1102EUA-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
A1101EUA-T 急速微电子 | 完全替代 | A1102EUA-T和A1101EUA-T的区别 |
A1101ELHLT-T 急速微电子 | 完全替代 | A1102EUA-T和A1101ELHLT-T的区别 |
A1104EUA-T 急速微电子 | 完全替代 | A1102EUA-T和A1104EUA-T的区别 |
