A1324/5/6 Linear Hall Effect Sensor with Analogue Output, Allegra MicrosystemsThe Allegro A1324/5/6 linear Hall-effect sensor ICs provide a voltage output that is proportional to the applied magnetic field. Featuring a quiescent voltage output of 50% of the supply voltage and are pre-programmed to sensitivities of 5.0 mV/g, 3.125 mV/g, and 2.5 mV/g, respectively. Each IC integrates a Hall element, temperature-compensating circuitry, a small-signal high-gain amplifier, a clamped low-impedance output stage, and a proprietary dynamic offset cancellation technique. Available in a 3-pin ultra-mini SIP package, and a 3-pin surface mount SOT-23 package.Temperature-stable quiescent output voltage and sensitivity Output voltage proportional to magnetic flux density Low-noise output increases accuracy Precise recoverability after temperature cycling Ratiometric rail-to-rail output Wide ambient temperature range: –40°C to 150°C Immune to mechanical stress Solid-state reliability Enhanced EMC performance for stringent automotive applications ### 霍尔效应传感器,Allegro Microsystems
带模拟输出的 A1324/5/6 线性霍尔效应传感器,Allegra Microsystems
Allegro A1324/5/6 线性霍尔效应传感器 IC 提供的电压输出与应用的磁场成比例。静态电压输出是电源电压的 50%,并且灵敏度分别预编程至 5.0 mV/g、3.125 mV/g 和 2.5 mV/g。
每个 IC 集成霍尔元件、温度补偿电路、小信号高增益放大器,以及夹紧低阻抗输出级和专有动态偏置抵消技术。
采用 3 引脚超微型 SIP 封装和 3 引脚表面安装 SOT-23 封装。
温度稳定静态输出电压和灵敏度
输出电压与磁通量密度成比例
低噪声输出可增加精确度
温度循环后可精确恢复
比例式轨对轨输出
宽环境温度范围:–40°C 至 150°C
抗机械应力
固态可靠性
增强 EMC 性能,用于要求严格的汽车应用
欧时:

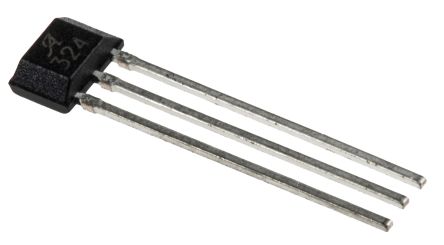

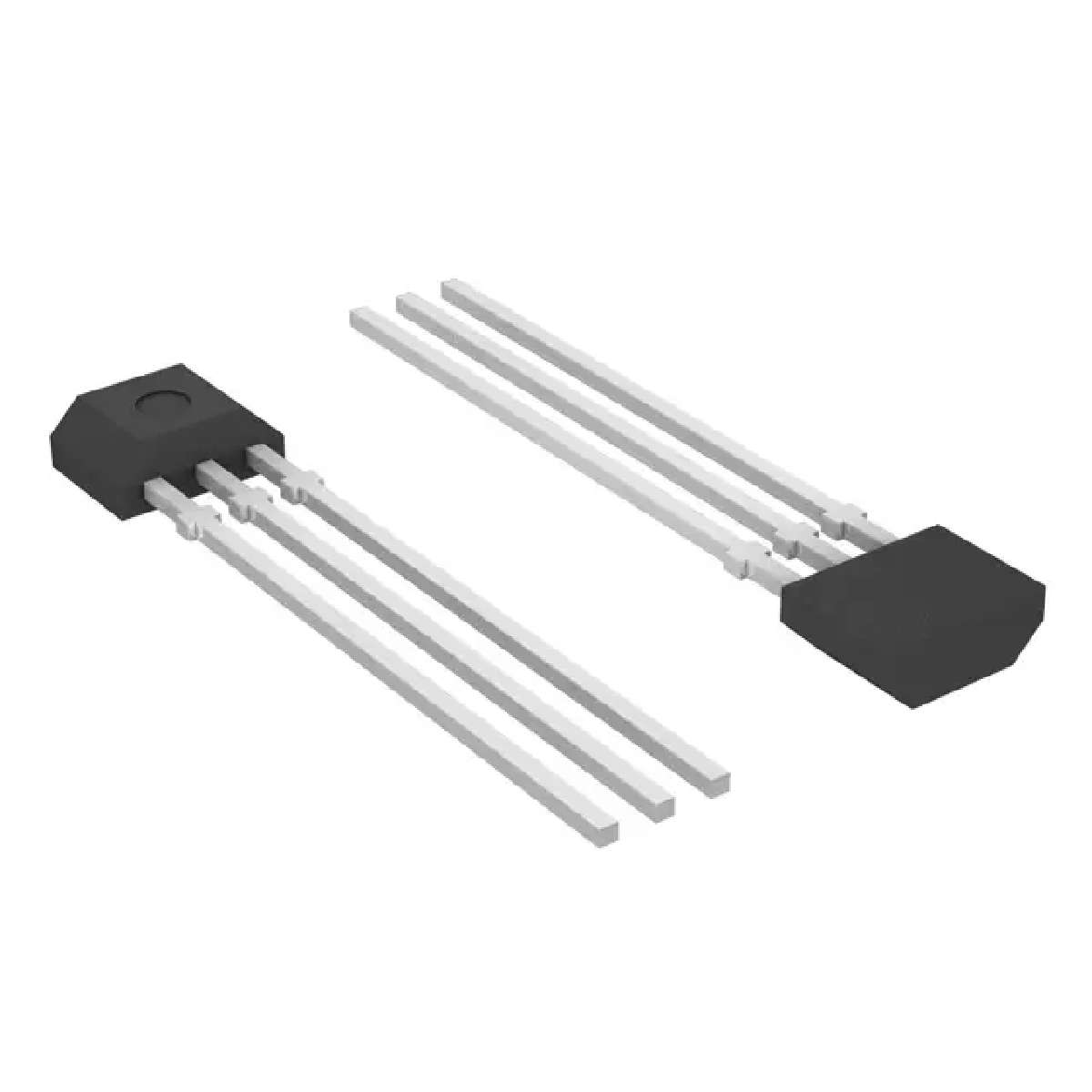

Allegro Microsystems A1324LUA-T 霍尔效应传感器, 线性磁场, 4.5 → 5.5 V电源, 3引脚 SIP封装
得捷:
SENSOR HALL EFFECT ANALOG 3SIP
立创商城:
霍尔效应传感器
艾睿:
Hall Effect Sensor 10mA Monolithic 5V Automotive 3-Pin Ultra Mini SIP Bag
安富利:
Hall Effect Sensor 10mA Monolithic 5V 3-Pin SIP Bag
Chip1Stop:
Hall Effect Sensor Monolithic 5V 3-Pin SIP Bag
TME:
Sensor: Hall; Case: SIP3; Usup:4.5÷5.5VDC; Temp: -40÷150°C
Verical:
Hall Effect Sensor 10mA Monolithic 5V Automotive 3-Pin Ultra Mini SIP Bag
Newark:
Hall Effect Sensor, Linear, 10 mA, SIP, 3 Pins, 4.5 V, 5.5 V
电源电压DC 4.50V min
输出电流 10 mA
供电电流 9 mA
针脚数 3
带宽 17 kHz
输出电流Max 10 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 3
封装 SIP-3
长度 4.09 mm
宽度 1.52 mm
高度 3.02 mm
封装 SIP-3
工作温度 -40℃ ~ 150℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 传感与仪器, Automotive, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A1324LLHLX-T 急速微电子 | 完全替代 | A1324LLHLX-T和A1324LLHLX-T的区别 |
A3517LUA 急速微电子 | 完全替代 | A1324LLHLX-T和A3517LUA的区别 |
A1321EUA-T 急速微电子 | 类似代替 | A1324LLHLX-T和A1321EUA-T的区别 |
